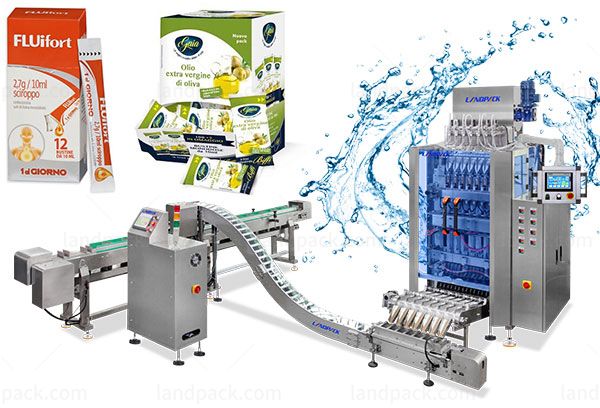

Automatic Multi-Lane Liquid Stick Bag Packing Packaging Cartoning Machine
Model: LD-480Y
Application:
It is suitable for all kinds of paste, and viscous liquid packaging, such as pharmaceutical Liquid, jam, chili sauce, honey, pizza sauce, peanut butter, tartar sauce, chocolate sauce, cream, liquid butter, shampoo, etc.
Advantages:
The product adopts an advanced PLC touch screen, and can set the filling amount and filling speed through the touch screen.
Application:
It is suitable for all kinds of paste, and viscous liquid packaging, such as pharmaceutical Liquid, jam, chili sauce, honey, pizza sauce, peanut butter, tartar sauce, chocolate sauce, cream, liquid butter, shampoo, etc.
Examples:
Various Liquids, syrup, peanut butter, chocolate sauce, juice, shampoo, pizza sauce honey, jam, paste, oil, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Sample:
| MULTI-LANE STICK PACK LIQUID PACKAGING MACHINE | |
Model | LD-480Y |
Lane number | 3-12 Lanes |
Filling Method | Piston pump; Peristaltic pump; Ceramic pump; Rotary pump |
Capacity | Max.50 cycles/min |
Sachet size | L: 50-180mm; W: 17-90mm |
Film width & Thickness | Max.560mm, 0.07-0.10mm |
Sealing type | Back sealing/ Stick bag |
Cutting type | 1.Straight cutting; 2.Zig zag cutting; 3.Round cutting; 4.Die-cut |
Air & Power | 0.8Mpa, 0.8m³/min,3.5kw |
Dimension & weight | 1385*918*2005mm,350kg |
| BOXING MACHINE | |
Model | LD200ZH |
Paper type | 250-400g/²(Boxes need come with pre-fold over) |
Capacity | 30-60 boxes/min |
Box type | Gusseted tongue type; Glue spray type |
Count way | Fixed number type; Numerable type; Manipulator counting |
Boxing way | Orderly type; Unorderly type |
Air & Power | 0.5-0.8Mpa 0.3m³/min;220V 50/60HZ 2.0KW |
Workflow | Box open - Bag packing - Check weigher - Counting - Boxing- Fold ears - Fold page - Gusseted tongue/Glue spray - Finish |
1. Automatically complete all tasks such as measurement, bag making, filling, sealing, batch number printing, cutting and counting.
2. Automatic slitting film system, multi-line row and bag sealing at the same time.
3. Servo film running system, pneumatic control for horizontal sealing, accurate positioning, remarkable performance and beautiful packaging.
4. The dual light source photoelectric detection system is stable and reliable to ensure the integrity of the packaging bag.
5. Intelligent PLC control system, stable operation of the machine, convenient and fast operation,
6. A variety of automatic alarm protection functions can effectively reduce the loss of materials and ensure work safety.
7. Use touch screen to set parameters and support multiple languages.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
