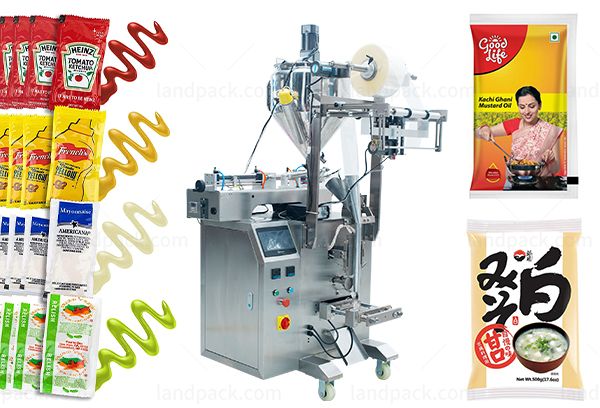

Manufacture 50-500ml Liquid Sachet Packing Machine
Model: LD-320L
Application:
Manufacture 50-500ml liquid sachet packing machine(LD-320L), it is suitable for packing for all kinds of liquid material which such as oil, sauce, tomato paste, ketchup, liquid milk, water, honey, juice, etc.
Details:
Film width:120-320mm; Bag length:50-200mm; Bag width:50-150mm; Diameter of film roll:Max.300mm; Packing speed:35-70bag/min; Measuring range:50-500ml; Film thickness :0.04-0.07mm
Application:
Manufacture 50-500ml liquid sachet packing machine(LD-320L), it is suitable for filling liquids and pastes of any fluidity in various industries.
Examples:
Sauce, honey, Ketchup, syrup, peanut butter, juice, shampoo, jam, paste, oil, hand sanitizer, mayonnaise, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Sample:
| Model | LD-320L | LD-380L |
| Film width | 120-320mm | 180-380mm |
| Bag length | 50-200mm | 60-280mm |
| Bag width | 50-150mm | 60-180mm |
| Diameter of film roll | Max.300mm | Max.320mm |
| Packing speed | 35-70bag/min | |
| Measuring range | 50-500ml | 50-750ml |
| Film thickness | 0.04-0.07mm | |
| Power | 220V 50/60Hz 2.2KW | 220V 50/60Hz 2.5KW |
| Machine size(L*W*H) | 970*680*1950mm | 1100*800*2150mm |
| Machine weight | About 300kg | About 450kg |
1. Computer PLC control and automatic alarming function.
2. Multilingual screen display, easy operation.
3. High sensitivity photoelectric eye color tracing,more accuracy.
4. Bag type can be customised to 3 or 4 sides sealing bag, pillow bag, long stick bag, link bag, etc.
5. Famous brand components, ensure the quality and durability of machine.
6. Weight measuring, bag making, filling, sealing, cutting and bags counting can be done automatically.
7. Ribbon code printer, link-bag device is option.
8. Multipurpose packaging, suitable for various packaging of different product.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
