High-Precision Powder Filling Line With Tin Can Sealing Machine And UV Sterilizer

Model: LD-PAF01

Application:

High-precision powder filling line with tin can sealing machine and uv sterilizer, It is suitable for automatic filling of various powder products, such as milk powder, protein powder, nutritional powder, coffee powder, medicine powder, chemical powder, meal replacement powder, etc.

E-mail: [email protected]

Tel/Whtasapp: +86 173 8860 2385

Get Price Send Email
  • Application
  • Description
  • Features
  • Videos

Application:

High-precision powder filling line with tin can sealing machine and uv sterilizer, It is suitable for automatic filling of various powder products, such as milk powder, protein powder, nutritional powder, coffee powder, medicine powder, chemical powder, meal replacement powder, etc.

Packaging Type: Cans, Tins, Barrel, Bottles, Capsule, Cartons, Stand-up Pouch

Packaging Material: Glass, Metal, Paper, Plastic, Wood, Other.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Samples:

High-Precision Powder Filling Line With Tin Can Sealing Machine And UV Sterilizer

Product NameAutomatic Powder Filling Line
Model LD-PAF01
Filling Range100-2000g (Customizable)
Filling Speed10-25 bottle/min
Measurement accuracy±1%
Power
4.5 KW
Working power supply220V、50Hz
Working pressure0.6-0.8MPa
Weight500kg
SizeL11782*W3465.09*H2523.52(mm)

1.Automatic two-head Auger type metering/filling system works with the automatic capping machine.

2.Able to work with the double star wheels for bottle/can conveying & positioning system to perform the filling operation.

3.Conveyor is mounted a precision splitter to perform the intermittent movement for bottle/can to achieve the accurate positioning function.

4.Transmission system of the filling machine is driven by Japan Panasonic servo motor for high accuracy and stability.

5.Auto bottle/can positioning, lifting and vibrating, filling system is able to stop filling automatically when there's no bottle, and when bottle jammed occurs, the machine (system) will also stop automatically.

6.10 sets of memory modules for memorizing different kinds of products and filling weights.

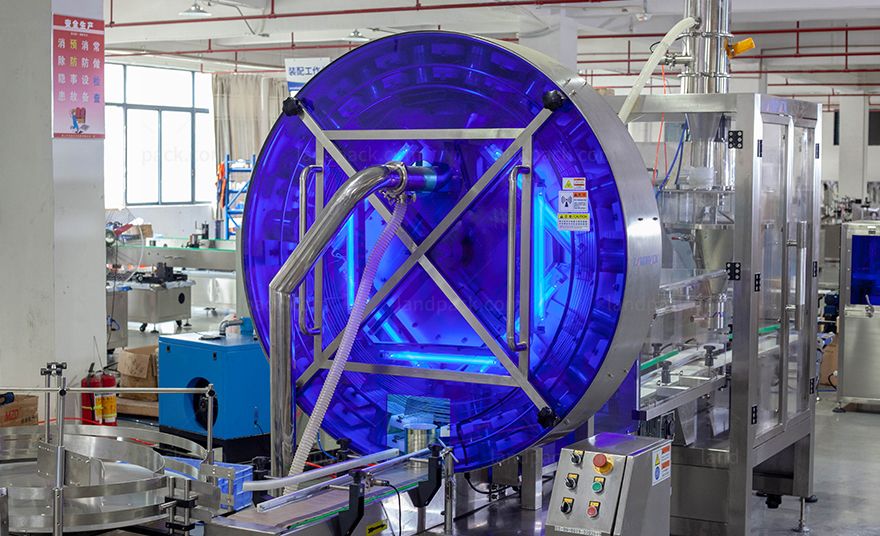

7. This line is especially suitable for canned milk powder, protein powder, nutrition powder and so on, equipped with UV sterilization and purging.

8. Drop the spoon automatically.

9. The filling machine adopts the weighing filling measurement, the precision is higher than the screw measurement.

10. Vacuum sealed tank filled with nitrogen to extend the shelf life of products.

We have many different kinds of powder customer packing case videos, please feel free to contact us to obtain your product packing case videos.
