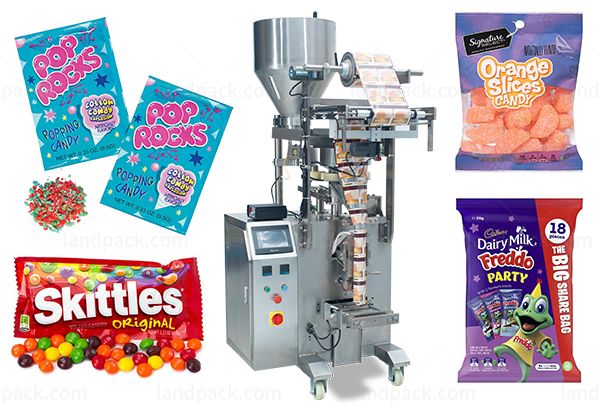

Automatic Candy Packing Machine With Measuring Cups Equipment
Model: LD-320A
Application:
Suitable for packing for all kinds of grain material which such as all kind of candy, nut, cashew, seeds, melon seeds, sesame seed and chips, snack, peanuts, chocolate, popcorn, dry fruit, preserved fruit, jelly, biscuit, almond etc.
Advantage:
The measuring cup is used to accurately control the weight or capacity of the product.
Application:
Automatic candy packing machine(LD-320A) with measuring cups equipment, the measuring cup is used to accurately control the weight or capacity of the product.
Examples:
Candy, nut, cashew, seeds, melon seeds, sesame seed and chips, snack, peanuts, chocolate, popcorn, dry fruit, preserved fruit, beef jerky, jelly, biscuit, almond etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
| Model | LD-320 | LD-380 |
| Film width | 120-320mm | 180-380mm |
| Bag length | 50-200mm | 60-280mm |
| Bag width | 50-150mm | 60-180mm |
| Diameter of film roll | Max.300mm | Max.320mm |
| Packing speed | 35-70bag/min | |
| Measuring range | 50-500ml | 50-750ml |
| Film thickness | 0.04-0.07mm | |
| Power | 220V 50/60Hz 2.2KW | 220V 50/60Hz 2.5KW |
| Machine size(L*W*H) | 970*680*1950mm | 1100*800*2150mm |
| Machine weight | About 300kg | About 450kg |

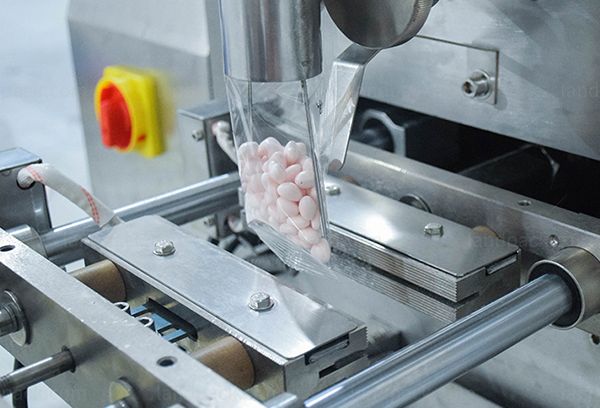

1.Products dosing, Filling, Laminate heat sealable pouch making and sealing;
2.Stainless steel 304 structure and surface;

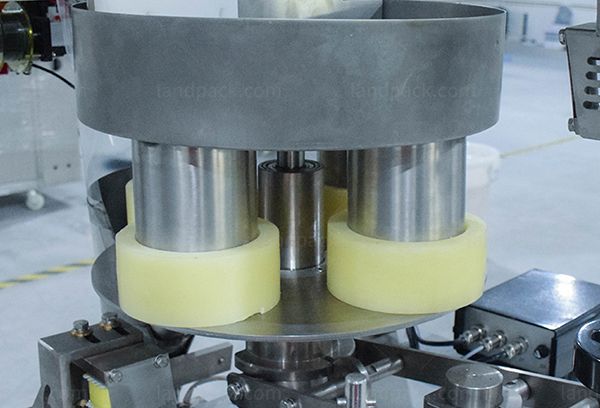

3.The measuring cup is used to accurately control the weight or capacity of the product.
4.Simple changing of pouch former, to adapt different pouch size requirement;
5.Intelligent temperature controlling configuration, ensure the artistic and neat sealing;
6.Configure with packaging film pre-pulling device, to enable stable pouch making;
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
