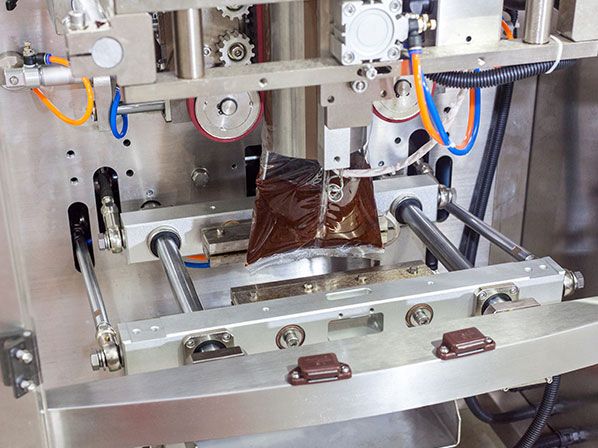

Automatic Pouch Packing Machine Chutney Sauce Vertical Packing Machine
Model: LD-420L
Application:
This machine is suitable for packing all kinds of liquid or paste products such as chutney, juice, oil, cosmetic cream, jam, butter, tomato paste, ketchup, olive oil, and honey,sauce, shampoo, lotions, etc
Advantages:
The product adopts advanced general control technology, can set the filling amount and filling speed through the touch screen.
Application:
This machine is suitable for packing all kinds of liquid or paste products such as chutney, juice, oil, cosmetic cream, jam, butter, tomato paste, ketchup, olive oil, and honey,sauce, shampoo, lotions, etc
Examples:
Chutney, ketchup, syrup, peanut butter, juice, shampoo, pizza sauce, chocolate sauce, paste, oil, hand sanitizer, mayonnaise, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Sample:
Model | LD-420L | LD-520L | LD-620L | LD-720L |
Film width | Max.420mm | Max.520mm | 150-Max.620mm | 150-Max.720mm |
Bag length | 80-300mm | 60-400mm | 60-450mm | 60-500mm |
Bag width | 60-200mm | 100-250mm | 65-300mm | 65-350mm |
Film roll diameter | Max.600mm | Max.600mm | Max.600mm | Max.600mm |
Packaging rate | 5-60 bags/min | 5-40 bags/min | 5-35 bags/min | 5-30 bags/min |
Range of measurement | 1000ml | 2000ml | 3000ml | 5000ml |
Film thickness | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
Power | 220V, 50/60Hz, 3kw | 220V, 50/60Hz, 3kw | 220V, 50/60Hz, 3.2kw | 220V, 50/60Hz, 3.5kw |
Machine size(L*W*H) | 1217*1015*1343mm | 1488*1080*1490mm | 1488*1180*1550mm | 1780*1350*2050mm |
1. 304stainless steel with food grade and energy saving.
2. Intelligent control,it can do fully automatic packaging,more precise and fast.
3. Using PLC system control& stepper motor to intelligently control.
4. Horizontal mixer, to mix the sauce more even
5. With heating device, to avoid stuck
6. With anti-leak valve
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
