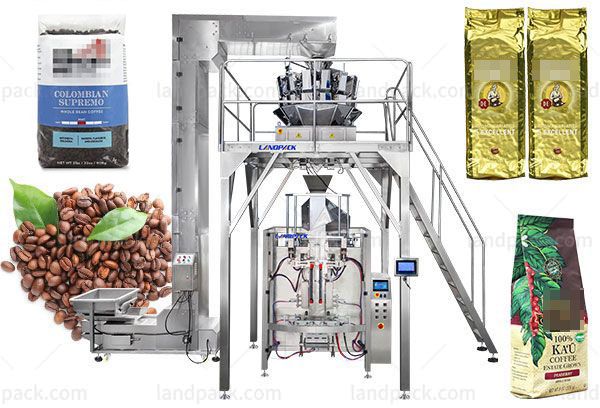

Automatic Vertical Form Fill Seal Coffee Bean Packing Packaging Machine
Model: LD-420AC
Application:
Automatic Vertical Form Fill Seal Coffee Bean Packing Packaging Machine, it is suitable for Coffee Beans, puffed food, patoto chips, crispy rice, jelly, candy, pistachios, apple slices, banana chips, frozen food, vegetable salad, dumplings, glutinous rice balls, chocolate, pet food, hardware itms, medicines and so on.
Application:
Automatic Vertical Form Fill Seal Coffee Bean Packing Packaging Machine, it is suitable for Coffee Beans, puffed food, patoto chips, crispy rice, jelly, candy, pistachios, apple slices, banana chips, frozen food, vegetable salad, dumplings, glutinous rice balls, chocolate, pet food, hardware itms, medicines and so on.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Samples:
| Model | LD-420AC | LD-520AC | LD-720AC | LD-900AC | LD-1050AC | LD-1200AC |
| Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm | 100-800mm | 100-1000mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm | 290-505mm | 290-580mm |
| Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | 400mm | 400mm | 400mm |
| Pakaging Rate | 5-60bag/min | 5-60bag/min | 5-55bag/min | 5-20bag/min | 5-20bag/min | 5-20bag/min |
| Film Width | Max.420mm | Max.520mm | 150-Max.720mm | Max.900mm | Max.900mm | Max.1200mm |
| Measurement Range | 150-1500ml | 5-2000ml | 4000ml | 1-25L | 1-25L | 1.5L-45L |
1. Suits for 1kg to 4kg grains large packing such as beans , chickpeas and dried nuts.
2. The machine could use the roll film to form the quad seal pouch and gusseted bags automatically.
3. The whole set of machine is very easy for you to operate, it is controlled by the touch screen and PLC system , The bag length could be changed on touch screen easily.
4. Imported PLC system, machine performance is stable and easy for parameters adjusting.
5. With a memory function for storage ten sets of parameters. Easy to change packing product.
6. Separate PID temperature controller, suitable for various packing materials.
7. Multi-union roll film pulling system make film running more smooth.
8. Adopt double servo film-dragging structure, enable stable bag forming for perfect bag shape.
9. Sophisticated sealing framework achieve the consistency of bag sealing and cutting.
10. Machine automatically finish the process of filling, metering, bag forming, date printing, sealing and packing.
11.Low loss, labor saving, easy for operation and maintenance.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
