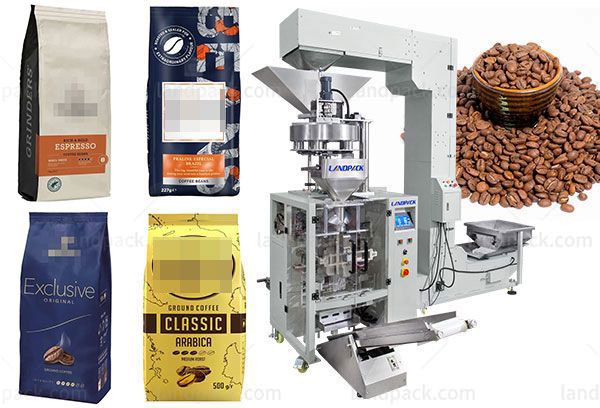

Automatic Vertical Gusset Bag Coffee Packing Machine With Volumetric Cups
Model: LD-420AC
Application:
It's suitable for packaging high accuracy and granule material, such as coffee beans, crispy rice, candy, pistachios, apple slices, dumplings, chocolate, pet food, small hardware, etc.
Application:
It's suitable for packaging high accuracy and granule material, such as coffee beans, crispy rice, candy, pistachios, apple slices, dumpling, chocolate, pet food, small hardware, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Samples:
| Model | LD-420AC | LD-520AC | LD-720AC | LD-900AC | LD-1050AC | LD-1200AC |
| Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm | 100-800mm | 100-1000mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm | 290-505mm | 290-580mm |
| Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | 400mm | 400mm | 400mm |
| Pakaging Rate | 5-60bag/min | 5-60bag/min | 5-55bag/min | 5-20bag/min | 5-20bag/min | 5-20bag/min |
| Film Width | Max.420mm | Max.520mm | 150-Max.720mm | Max.900mm | Max.900mm | Max.1200mm |
| Measurement Range | 150-1500ml | 5-2000ml | 4000ml | 1-25L | 1-25L | 1.5L-45L |
1.Volumetric cups to measure, more efficient and ecomonical.
2. Suitable to pack small granules, like rice, beans, salt, sugar and so on.
3. With compacting structure, small floor space.
4. Imported PLC system, machine performance is stable and easy for parameters adjusting.
5. With a memory function for storage ten sets of parameters. Easy to change packing product.
6. Separate PID temperature controller, suitable for various packing materials.
7. Multi-union roll film pulling system make film running more smooth.
8. Adopt double servo film-dragging structure, enable stable bag forming for perfect bag shape.
9. Sophisticated sealing framework achieve the consistency of bag sealing and cutting.
10. Machine automatically finish the process of filling, metering, bag forming, date printing, sealing and packing.
11.Low loss, labor saving, easy for operation and maintenance.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
