High Speed Multilane Coffee Powder Stick Cartoning Packaging Line
Model: LD280BK
Application:
Automatic multi-lane stick pack powder packaging cartoning line is suitable for particles with good fluidity in food, health care, and pharmaceutical industries such as coffee powder, protein powder, beverages, fruit enzyme powder, white sugar, milk powder, Chinese medicine granules, etc.
Application:
Automatic multi-lane stick pack powder packaging cartoning line is suitable for particles with good fluidity in food, health care, and pharmaceutical industries such as coffee powder, protein powder, beverages, fruit enzyme powder, white sugar, milk powder, Chinese medicine granules, etc.
Packaging Line Composition:

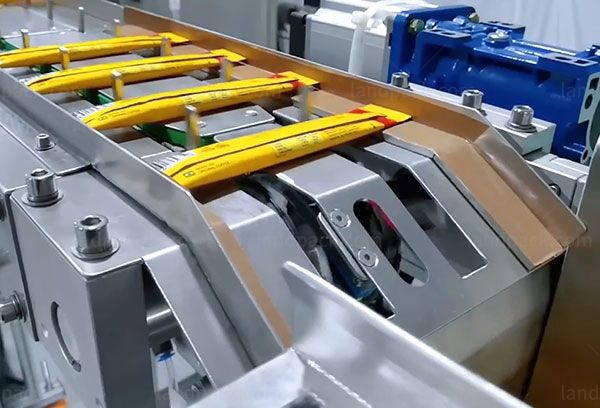

This packaging and boxing system consists of LD-280BK Multi-lane stick pack fine granule packaging machine, a sorting bag equipment and LD200ZH boxing machine. It can realize stick packed packaging into a box.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
| MULTI-LANE STICK PACK POWDER PACKAGING MACHINE | |
Model | LD280BK |
Lane number | 2-6 Lanes |
Filling Method | 1. Volumetric cup; 2. Weigher; |
Capacity | Max.50 cycles/min |
Sachet size | L: 50-180mm; W: 17-65mm |
Film width & Thickness | Max.280mm, 0.07-0.10mm |
Sealing type | Back sealing/ Stick bag |
Cutting type | 1.Straight cutting; 2.Zig zag cutting; 3.Round cutting; 4.Die-cut |
Air & Power | 0.8Mpa, 0.8m³/min, 3.5kw |
Dimension & weight | 1385*918*2005mm;350kg |
| BOXING MACHINE | |
Model | LD200ZH |
Paper type | 250-400g/²(Boxes need come with pre-fold over) |
Capacity | 30-60 boxes/min |
Box type | Gusseted tongue type; Glue spray type |
Count way | Fixed number type; Numerable type; Manipulator counting |
Boxing way | Orderly type; Unorderly type |
Air & Power | 0.5-0.8Mpa, 0.3m³/min, 220V, 50/60HZ, 2.0KW |
Workflow | Box open - Bag packing - Check weigher - Counting - Boxing- Fold ears - Fold page - Gusseted tongue/Glue spray - Finish |
1. Automated Multifunctionality: This machine can automatically perform tasks such as measuring, bag making, sealing, cutting, counting, and finishing product conveyors.
2. Hidden Heat and Moving Parts: The heat-generating components and moving parts are discreetly housed within a protective cover, ensuring safety and efficient operation.
3. Stainless Steel Contact Surfaces: The parts of the machine that come into contact with the product are made of stainless steel, meeting the requirements for pharmaceutical and food production.
4. Easy Mobility with Casters: The equipment is equipped with casters, making it easy to handle and move.
5. Automatic Alarm System: The machine features an automatic alarm system, enhancing safety and preventing material wastage.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
