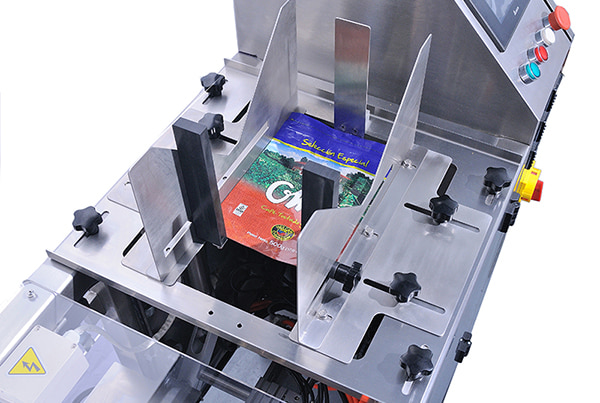

Low Cost Mini Doypack Machine For Coffee Powder/ Ground Coffee

Application:

Low Cost Mini Doypack Machine For Coffee Powder/ Ground Coffee(LD-300D/LD--430D), Premade pouch can be 3-side-seal, gussette pouch, standup pouch with zipper or no-zip-lock. Ideal choice for coffee powder, ground coffee, milk powder, glucose, seasoning, washing powder, chemical materials,  pesticide, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Samples:

1. Model: LD-300D/LD--430D

2. Bag Material: Multilayer Composite Premade Bag(e.g.: PET/PE)

3. Bag Type: 3 Side Seal Bag, Stand-up Bag

4. Upgradable Bag Type: Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device)

5. Size Range: 80mm≤W≤300mm 100mm≤L≤400mm

6. Speed: 0~15bags/min

7. Sealing Type: Straight grain, pitch is 1mm (Optional reticulate)

8. Sealing Width: 10mm (5--20mm can be customized)

9. Voltage: 220V, Single-phase, 50/60HZ, 1.2KW

10. Air Pressure: 0.65Mpa

11. Air Consumption: 0.3m³/min (Standard machine, no additional function)

12. Body Dimension: 1770*600*1260mm

13. Packing Dimension: 1860*710*1650mm (Export non-fumigation wooden case)

Basic Configurations:

1.  Touch Screen: China Kinco 7 inches corlor touch screen;

2.  Languages: Chinese, English, Spanish, Dutch, Italian, Korean (At most three languages);

3.  PLC: Japan Panasonic;

4.  Cylinder: Taiwai Airtac (Can be upgraded to Japan SMC);

5.  Vacuum Generator: China Airbest (Can be upgraded to Vacuum Pump);

6.  Vacuum Component: Japan SMC;

7.  Modular Control System For Vacuum Pressure: Japan SMC;

8.  Modular Control System For Temperature: China YUDIAN;

9.  Electrical Component: Schneider / Omron;

10.  Safety Key Interlock Switch;

11.  The main structure of the machine is SUS304 (The thickness of the rack is 3.0mm), and the material of the part is aluminum;

12.  The part (Hopper) in contact with the material is SUS304 (Can be upgraded to SUS316L).

Basic Functions:

1.  The machine stops running when the safety key interlock switch is pulled out;

2.  No bag prompting function;

3.  Self-diagnosis function of open the bag failed (The bag can be reused); In that case, the machine will not fill and seal, it will re-take the bag;

4.  Positioning (anti-dropping) function of hopper;

5.  Warning function of cartridge heater fault ;

6.  Warning function of cylinder fault.

7.  Warning function which air pressure is not up to standard.

Performance Features:

1.  Easy to operate and easy to replace the bag / The machine is suitable for a variety of bag types;

2.  Low maintenance cost / Modular replacement of the parts;

3.  Certificate of Conformity.

We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
