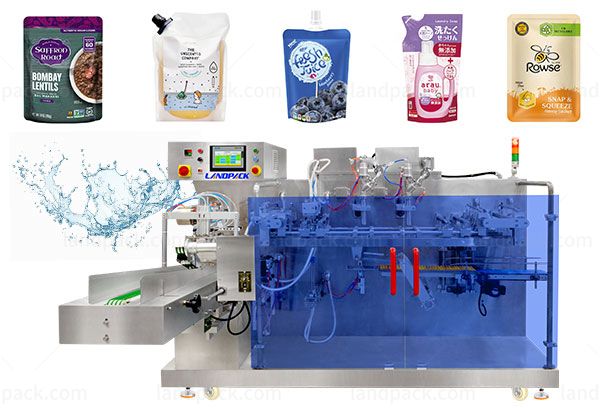

Automatic Liquid Detergent Premade Spout Pouch Doypack Packing Machine
Model : LDSP-260L
Application :
Suitable for all kinds of liquid products and can pack different premade bags. It is applied to various types of liquid such as liquid detergent, honey, milk, oil, ketchup, paste, sauce, fruit juice, chili sauce, sunflower oil, tomato sauce, laundry liquid, etc.
Application :
Suitable for all kinds of liquid products and can pack different premade bags. It is applied to various types of liquid such as liquid detergent, honey, milk, oil, ketchup, paste, sauce, fruit juice, chili sauce, sunflower oil, tomato sauce, laundry liquid, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Sample:
| Model | LDSP-160 | LDSP-160Y | LDSP-210 | LDSP-260 |
| Bag Type | 3-side, 4-side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag, etc. | |||
| Pouch Size (mm) | 110-230mm(L); 80-160mm(W) | 70-100mm(L); 110-230mm(W) | 70-100mm(L); 110-230mm(W) | 100-260mm(L); 110-320mm(W) |
| Filling Range | 10g-100g | 10g-100g | 10g-1kg | 10g-3kg |
| Packing Speed | 20-45 bags/min | 25-50 bags/min | 20-50 bags/min | 20-50 bags/min |
| Power | 2 KW | 2 KW | 2 KW | 2 KW |
| Workflow | 1. Giving bag; 2. Pick up the bag(coding); 3. Open the bag up and down; 4. Fill; 5. Heating sealing; 6. Output of product | |||
| Machine Size | 1750mm*1285mm*1360mm(L*W*H) | 2140mm*1366mm*1360mm(L*W*H) | ||
| Collocation | Screw metering, screw elevator | |||
| Machine Weight | 800 kg | 800 kg | 900 kg | 1000 kg |

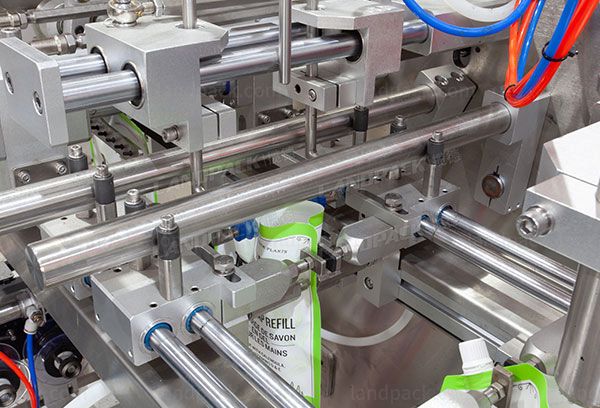

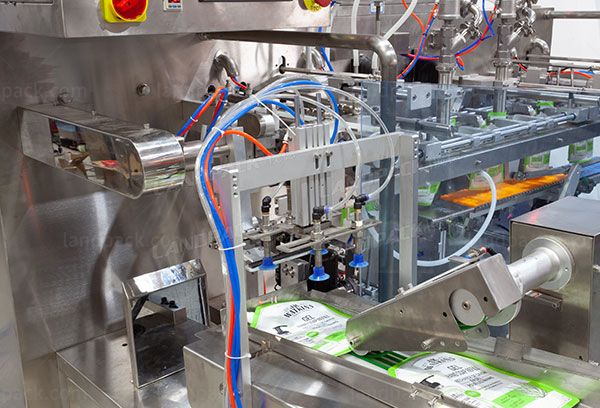

1. Specifically designed for spout bags, ensuring successful automatic bag picking for smooth operation.

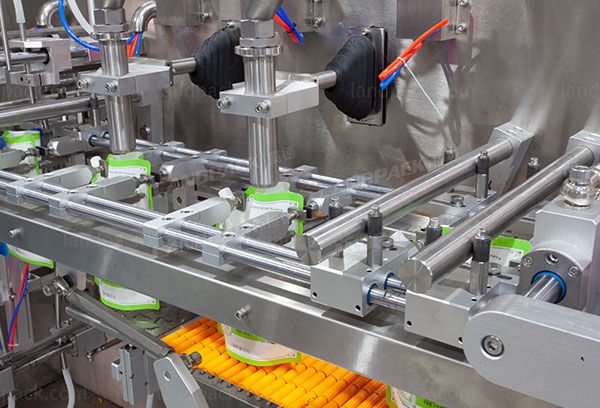

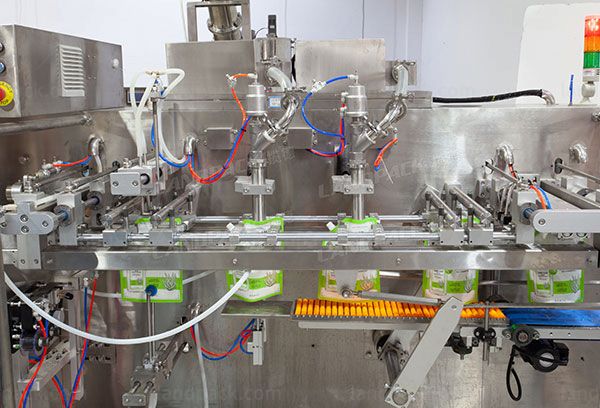

2. Two filling nozzles work simultaneously, allowing the total target filling volume to be reached. The individual filling volumes can be adjusted independently, shortening the filling time and increasing packaging speed.
3. Prevents the bag from sliding down due to the heavy filling weight, ensuring accurate sealing without tilting or poor-quality seals.
4. Ensures the bag opens fully and filling is successful.
5. High-quality control system for reliable performance.
6. Handles bags with dimensions of 120-260 mm width and 110-360 mm length.
7. Simple to operate with a high filling accuracy, maintaining an error margin of only 1%.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
Get Price & More Detail
