Fully Automatic 4 Heads Tracking Type Filling Capping Labeling Line Machine for Detergent
Model: LD-ALF01
Features:
1. Customize the size of the whole line according to the plant space;
2. Can switch different capacity bottle filling, simple operation, strong flexibility;
3. Automatic filling, capping, labeling, screen memory parameters, change the bottle type, change the parameters can be.
Application:
The packing line is mainly suitable for packing all kinds of liquid, fluid and paste material, such as detergent, edible oil, sauce, daily necessities, medicine, mobility liquid, detergent, automobile oil, glass water, hand sanitizer, shower gel, shampoo, etc..
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Sample:
Product Name | Automatic Liquid Filling Production Line |
Model | LD-ALF01 |
Filling Range | 50-1000ml(Customizable) |
Filling Speed | 20-35 bottle/min |
Measurement accuracy | ±1% |
Power | 2 KW |
Working power supply | 220V、50Hz |
Working pressure | 0.6-0.8MPa |
Weight | 600kg |
Size | L4000*W1320*H2090(mm) |
It is made of electrical components of internationally famous brands.
1. No filling if there is no bottle, no filling if the bottle is falling;
2. Achieve one-click adjustment and can store 40 formulas;
3. Make sure to clean everywhere, particularly those areas out of sight.
4. The submersible filling function can be configured to prevent bubbles during the filling process;
5. The filling accuracy is high, and the vacuum suction device can be configured to achieve equal liquid-level filling;
6. Compared with linear filling, tracking filling is twice as fast.
Work Flow:
1. Diaphragm Pump Feeding for detergent liquid .

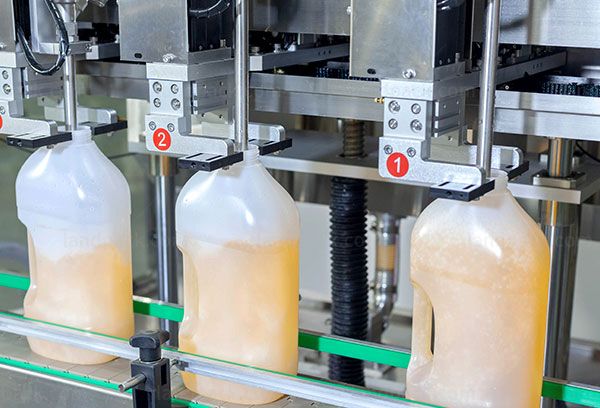

2. Gear Pump 4 Head Tracking Filling Machine.
3. Gear Pump Filling Max 5 liters.
4. Filling with Bottom to Up Design.
5. Cap Feed By manual.
6. Double Head Capping Machine.
7. U shape Conveyor for limited Space.
8. Double Side Labeling Machine.
9. Finished Bottle Collector.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
