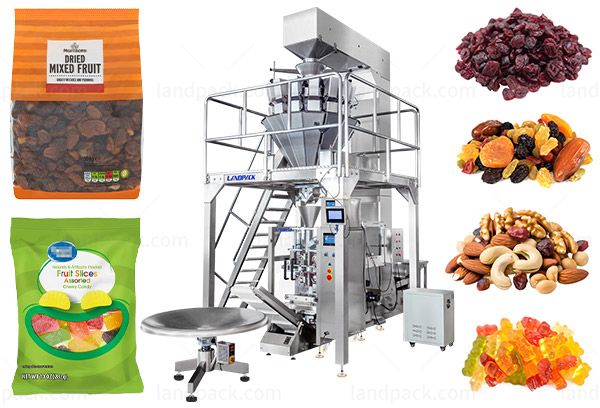

Automatic Dry Fruit Pouch Weighing Vertical Packing Machine
Model: LD-420A
Application:
Suitable for packing all kinds of grain material which such as dry fruit, vegetable salad, nut, cashwe, candy, sunflower seeds, sugar, salt, pet food, potato chips, popcorn, almond, , instant oatmeal / cereal oats, screw, etc.
Advantage:
It can be applied to products of various shapes and sizes, and has strong adaptability.
Application:
Automatic dry fruit pouch weighing vertical packing machine(LD-240A), it can be applied to products of various shapes and sizes, and has strong adaptability.
Examples:
Dry fruit, vegetable salad, nut, cashwe, candy, sunflower seeds, sugar, salt, pet food, potato chips, popcorn, almond, , instant oatmeal / cereal oats, screw, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
| Type | LD-420 | LD-520 | LD-620 | LD-720 |
| Film width | Max.420mm | Max.520mm | 150-Max.620mm | 150-Max.720mm |
| Bag length | 80-300mm | 60-400mm | 60-450mm | 60-500mm |
| Bag width | 60-200mm | 100-250mm | 65-300mm | 65-350mm |
| Film roll diameter | Max.600mm | Max.600mm | Max.600mm | Max.600mm |
| Packing speed | 5-60bag/min | 5-40bag/min | 5-35bag/min | 5-30bag/min |
| Making-bag volume | 1000ml | 2000ml | 3000ml | 5000ml |
| Film thickness | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |  0.04-0.12mm |
| Power Supply | 220V,50/60Hz,3KW | 220V,50/60Hz,3KW | 220V,50/60Hz,3.2KW | 220V,50/60Hz, 3.5KW |
| Machine size (L*W*H) | (L)1217X(W)1015X(H)1343mm | (L)1488X(W)1080X(H)1490mm | (L)1488X(W)1180X(H)1550mm | (L)1780X(W)1350X(H)2050mm |
1.Complete set of equipment control, automatic control of feeding, packaging without material, stable operation of equipment and low loss.
2.The machine complete the whole process of automatic feeding, measuring, filling, bag making, vacuum, date printing and finished product output automatically.
3.LD series packaging machine is the earliest mature machine, and has the largest sales volume in domestic and export in more than ten years.
4.Material conveyor design is simple, smooth and quiet.
5.From the design to the rational use of materials, the platform is stable and safe, so that the accurate measurement of the combined scale will not be affected.
6.The product can be connected before the production line, the finished product can be rechecked directly, the metal inspecting machine can test it. Then the carton packaging line can be connected to form a complete package line, which saves a lot of cost.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
