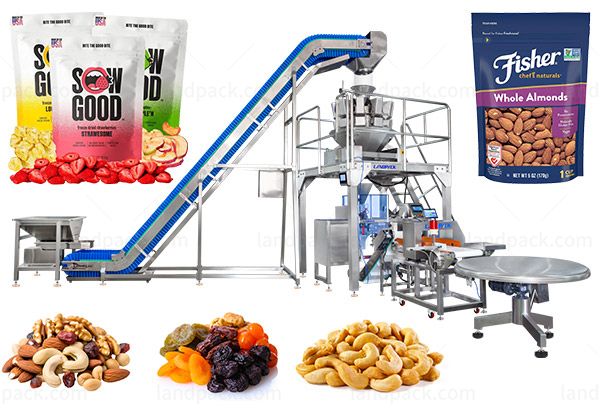

Automatic Dry Fruit Vffs Packaging Machine With Linear Weigher
Model: LD-720AS
Application:
Apply to pack bulk grain, slice, short bar material products such as dry fruit, beef jerky, nut, puffy food, popcorn, shrimp chip, sunflower seed, peanut, beans, etc.
Advantage:
It can be applied to products of various shapes and sizes, and has strong adaptability.
Application:
Automatic dry fruit vffs packaging machine(LD-720AS) with linear weigher, it can be applied to products of various shapes and sizes, and has strong adaptability.
Examples:
Dry fruit, Beef jerky, nut, puffy food, popcorn, shrimp chip, sunflower seed, peanut, beans, pet food, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
Model | LD-420C | LD-520C | LD-720C |
| Film Width | Max.420mm | Max.520mm | Max.720mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm |
| Roll Diameter | Max.320mm | Max.320mm | Max.320mm |
| Film Thickness | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Measuring Range | 150-1500ml | 2000ml | 4000ml |
| Packing Speed | 5-60bag/min | 5-60bag/min | 5-55bag/min |
| Power | 220V 50/60Hz 2KW | 220V 50/60Hz 3KW | 220V 50/60Hz 3KW |
| Machine Size(L*W*H) | 1217*1015*1343mm | 1488*1080*1490mm | 1780*1350*2050mm |
| Machine Weight | About 650kg | About 680kg | About 750kg |
| Option Device | 1.Date Printing, 2.Hole Punching Device(Pinhole, Round hole, the butterfly hole), 3.Air-filling Device, 4.Tear Notch Device | ||
1. New design with perfect fashion, more reasonable structure, more advanced technology.
2. Imported PLC control system, colorful touch screen, easy operation, Intuitionistic and efficient.
3. Standard positioning with imported servo film transporting system and mark sensor, superexcellent capability for compele machine, perfect packaging.
4. With auto warning protection function to minimize loss.
5. Various kinds of bag, it could provide the hand hole bag, link bag, etc.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
