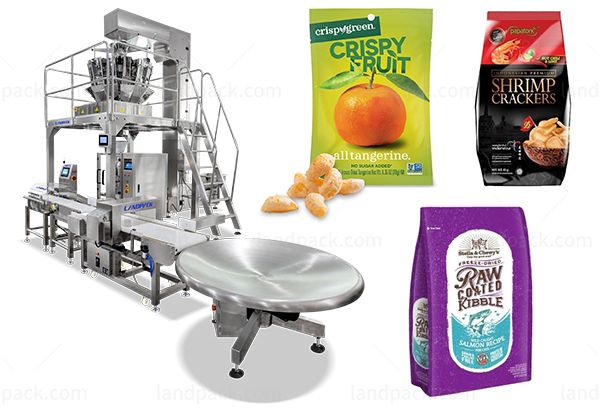

Automatic Dry Food Weighing And Packing Vertical Machine With Metal Detector
Model: LB-320B
Application:
Suitable for packing all kinds of grain material, sheet material, strip material and abnormity material which such as dry food, dry fruit, beef jerky, nut, cashwe, candy, sunflower seeds, peanut, pet food, potato chips, popcorn, almond, instant oatmeal / cereal oats, etc.
Application:
Automatic dry food weighing and vertical packing machine with metal detector, it can be applied to products of various shapes and sizes, and has strong adaptability.
Examples:
dry food, dry fruit, beef jerky, nut, cashwe, candy, sunflower seeds, peanut, pet food, potato chips, popcorn, almond, instant oatmeal / cereal oats, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
| Model | LD-420 | LD-520 | LD-720 | LD-900 | LD-1050 | LD-1200 |
| Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm | 100-800mm | 100-1000mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm | 290-505mm | 290-580mm |
| Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | 400mm | 400mm | 400mm |
| Pakaging Rate | 5-60bag/min | 5-60bag/min | 5-55bag/min | 5-20bag/min | 5-20bag/min | 5-20bag/min |
| Film Width | Max.420mm | Max.520mm | 150-Max.720mm | Max.900mm | Max.900mm | Max.1200mm |
| Measurement Range | 150-1500ml | 5-2000ml | 4000ml | 1-25L | 1-25L | 1.5L-45L |
1.Multi-head combined weigher, improve metering speed and accuracy.
2.7inch touch screen, easy operation and multiple language for choice.
3.Imported PLC system, machine performance is stable and easy for parameters adjusting.
4.With a memory function for storage ten sets of parameters. Easy to change packing product.
5.Separate PID temperature controller, suitable for various packing materials.
6.Multi-union roll film pulling system make film running more smooth.
7.Adopt double servo film-dragging structure, enable stable bag forming for perfect bag shape.
8.Sophisticated sealing framework achieve the consistency of bag sealing and cutting.
9.Machine automatically finish the process of filling, metering, bag forming, date printing, sealing and packing.
10.Equipped with a labeling machine, metal detector and a weight selection scale to ensure the safety of packaged products and control weight errors.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
