Automatic Motor Oil Bottle Filling Machine With Piston
Model: LF-LZ-08
Application:
Automatic motor oil bottle filling machine(LF-LZ-08) with piston, it is recommended for a wide variety of products including engine oil, motor oil, syrup, face cream, ketchup, tomato sauce, mayonnaise, paste, cream, chili sauce, honey, etc.
Advantages:
The filling system is driven by a servo motor which assures high filling accuracy. It is controlled by the PLC, human interface, and easy operation.
Application:
Automatic motor oil bottle filling machine(LF-LZ-08) with piston, it is suitable for filling liquids and pastes of any fluidity in medicine, food, cosmetics and other industries.
Examples:
Engine oil, motor oil, syrup, peanut butter, condensed milk, chocolate sauce, ketchup, juice, shampoo, fruit juice, honey, jam, paste, oil, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

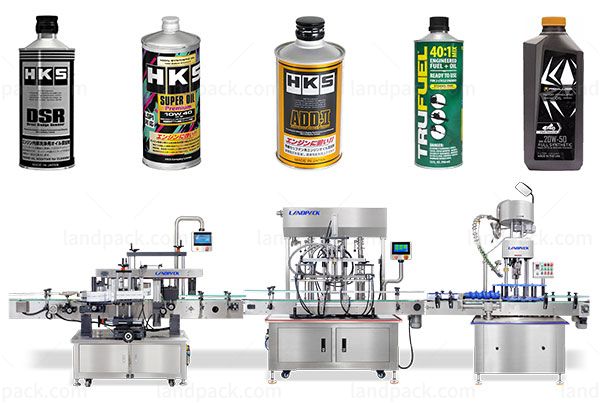

Packaging Sample:
Machine Parameters:
| Filling Volume | 100ml-1000ml 250ml-2500ml 500ml-3000ml 500ml-5000ml | |||||
| Filling Material | Petroleum jelly, vaseline, face cream, ketchup, tomato sauce, mayonnaise, jam, paste, oil, yogurt, cream, hot sauce, chili sauce, honey, etc. | |||||
| Filling nozzle | 2 | 4 | 6 | 8 | 10 | 12 |
| Capacity（B/H) | 800-1000 | 1500-1800 | 1800-2500 | 2500-3000 | 3000-3600 | 3600-4200 |
| Filling Precision | Less Than 0.5% | |||||
| Power supply | 220V Single phase 50HZ 380V Three phase 50HZ | |||||
Main Configuration:
Mesa, around the side plates are of high quality 304 stainless steel or other FDA approval of material production, and material contact parts for 316L quality stainless steel.
| Automatic Servo Filling Machine | ||||
| No. | Descriptions | BRAND | ITEM | Remark (made in China) |
| 1 | Servo Motor | Panasonic | 0.45KW | Japan |
| 2 | Reducer | Fenghua | ATF1205-15 | Taiwan |
| 3 | Conveyor Motor | ZhenYu | YZ2-8024 | China |
| 4 | servo drivers | Panasonic | LXM 23DU15M3X | Japan |
| 5 | PLC | Siemens | TM218LDALCODR4PHN | German |
| 6 | Touch Screen | Siemens | HMZGXU3500 | German |
| 7 | Frequency Converter | Danfoss | ATV12H075M2 | |
| 8 | Photo electricity of Inspect bottle | OPTEX or equal brand | BRF-N | Japan |
| 9 | Pneumatic Element | Airtac | Taiwan | |
| 10 | Rotary Valve | F07/F05 | No Need for Oil | |
| 11 | Pneumatic actuator | F07/F05 | No Need for Oil | |
| 12 | Low-Voltage Apparatus | Schneider | FRANCE | |
| 13 | proximity switch | ROKO | SC1204-N | Taiwan |
| 14 | Bearing | China | ||
| 15 | Lead Screw | TBI | Taiwan | |
| 16 | Butterfly valve | CHZNA | China | |
Bottle Filling Machine is adjustable for many different types of bottles
Easy to maintain, no special tools are required.
No bottle, no filling, automatic PLC control.

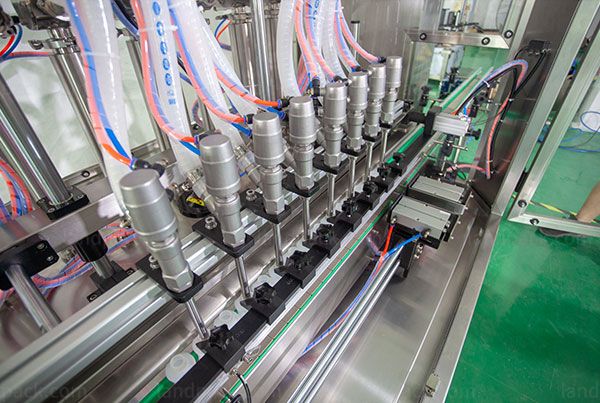

Filling nozzles are anti-drops, silk, and auto-cut viscous liquid.
Perfect filling precision: Less than 0.5%.
Special seals or hoses are adapted if the liquid is corrosive.
Diving nozzles for bottom-up filling of foaming products if needed.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
