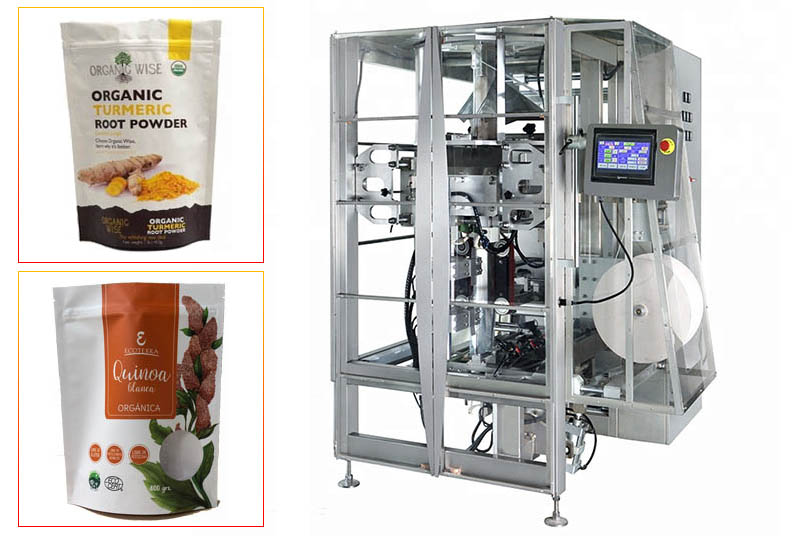

Automatic Granule Doypack Zipper Bags VFFS Packing Machine
Model: LD-DP520
Application:
Automatic Granule Doypack Zipper Bags VFFS Packing Machine (LD-DP520), This is specially for packing doy bags with zipper being form fill sealed in machine.
Application:
Automatic Granule Doypack Zipper Bags VFFS Packing Machine (LD-DP520), This is specially for packing doy bags with zipper being form fill sealed in machine.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Samples
| NAME | LD-DP520 |
| Capacity | 40 Bags/min Maximum |
| Bag size | (L)40-130 (W) 95-180mm |
| Film width | 300-520mm |
| Bag type | standard doy-pack Bags, doy-pack Bags with zipper |
| Film thickness | 0.04-0.09mm |
| botom gusset depth | 40-80mm |
| Air consumption | 0.8Mps 0.7m³/min |
| Total power | 5.3KW 220V 50/60HZ |
| Dimension | L1920×W1460×H2100mm |
| Net Weight | 750kg |
1. More than 95% spare parts are made of stainless steel. It can be used in humid environments stably and keep long time running.
2. All controlled by servo motor with planetary gear box. There are belts and vacuum pump control pulling film system
3. High standard bag type for market promotion.
4. Servo or cylinder can be chosen for horizontal sealing
5. The bottom side sealing and vertical sealing controlled by screw mandrel to adjust different size
6. With patent right for wrinkle tensioning device to make the bag better sealing
7. The bag forming tube is with five sides design, to make the perfect bag type and keep it nice.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
