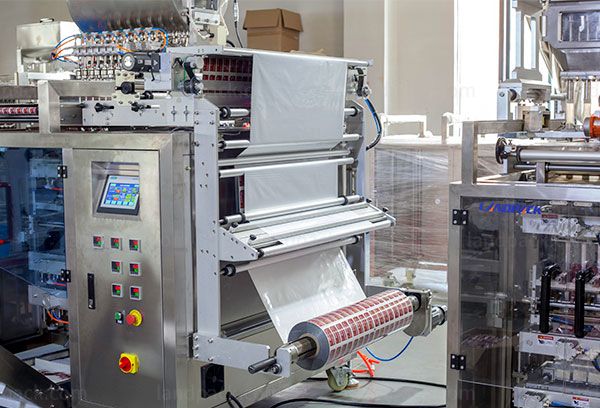

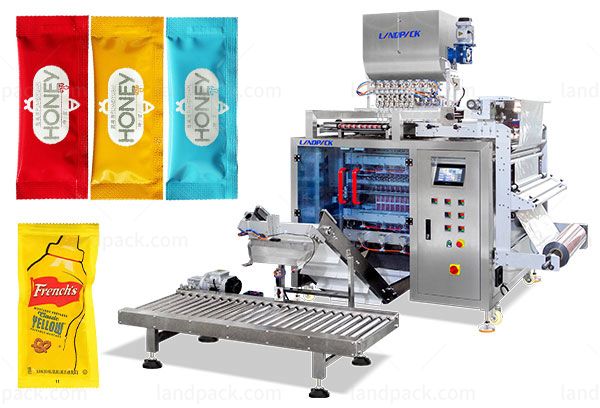

High Speed Honey Sachet Multi Lane Packing Machine
Model: LD-720Y
Application:
High speed honey sachet multi lane packing machine(LD-720Y), is suitable for all kinds of paste, viscous liquid packaging, such as honey, ketchup, chili sauce, pizza sauce, peanut butter, chocolate sauce, chili sause, cream, shower gel, shampoo etc.
Advantages:
The packing system is driven by a servo motor which assures high filling accuracy.
Application:
High speed honey sachet multi lane packing machine(LD-720Y), suitable for packing various kinds of liquid objects.
Examples:
Honey, ketchup, chili sauce, pizza sauce, peanut butter, chocolate sauce, chili sause, cream, shower gel, shampoo etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Sample:
Model | LD-480Y | LD-720Y | LD-960Y |
| Track Number | 4~6 Track | 4~10 Track | 4~12 Track |
| Filling Method | 1.Piston pump; 2.Peristaltic Pump | ||
| Capacity | Max.40 cycle/min | ||
| Sachet Size | L:45--120mm; W:35-60mm | L:45--120mm; W:35-90mm | L:45--120mm; W:35-120mm |
| Film Width & Thickness | Max.480mm;0.07-0.1mm | Max.720mm;0.07-0.1mm | Max.960mm;0.07-0.1mm |
| Sealing Type | 3/4 sides sealing | 3/4 sides sealing | 3/4 sides sealing |
| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | ||
| Air & Power | 0.8 mpa 0.8m³/min; 2.8kw | 0.8 mpa 0.8m³/min; 4.1kw | 0.8 mpa 0.8m³/min; 5.5kw |
| DIM & WT | 950*1470*1750mm; 300kg | 1153*1654*1750mm; 400kg | 1415*1686*2130mm; 500kg |

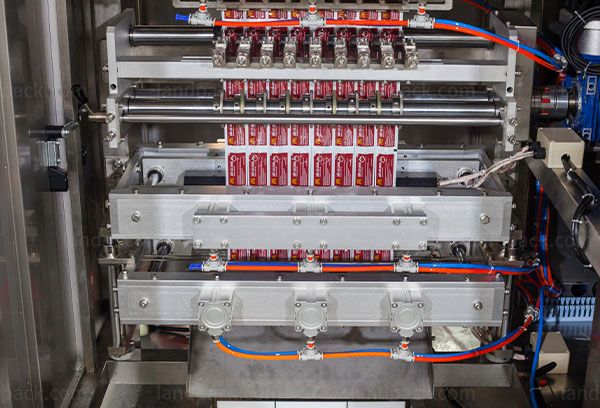

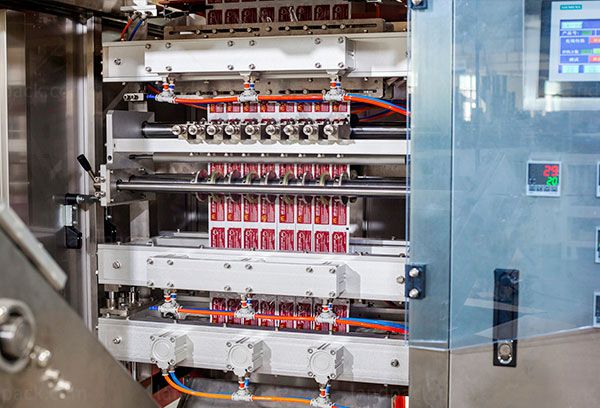

1. Automatic slitting film system, multi-line row and bag sealing at the same time.
2. Servo film running system, pneumatic control for horizontal sealing, accurate positioning, remarkable performance and beautiful packaging.
3. The dual light source photoelectric detection system is stable and reliable to ensure the integrity of the packaging bag.
4. Intelligent PLC control system, stable operation of the machine, convenient and fast operation,
5. A variety of automatic alarm protection functions can effectively reduce the loss of materials and ensure work safety.
6. Use touch screen to set parameters and support multiple languages.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
