Inline Filler Automatic 8 Nozzles Piston Pump Liquid Filling Machine
Model: LF-LZ-08
Application:
It is an automatic vacuum piston pump inline liquid filling machine.Suitable for low viscosity liquids that is easy to bubble up(such as Soy sauce,vinegar,,red wine,rice wine etc).
Advantages:
Compatible with various bottle types; one-key start, intelligent control, efficient canning; servo-driven, stable operation, accurate canning.
Application:
It is an automatic vacuum piston pump inline liquid filling machine.Suitable for low viscosity liquids that is easy to bubble up(such as Soy sauce,vinegar,,red wine,rice wine etc).
Packaging Type: It is suitable for various materials, and various bottle types, and has a wide range of applications.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Samples
Machine Parameters:
| Filling Volume | 100ml-1000ml 250ml-2500ml 500ml-3000ml 500ml-5000ml | |||||
| Filling Material | olive oil, oil, lube oil, shampoo, sauce, tomato paste, ketchup, liquid milk, water, honey, juice, etc. | |||||
| Filling nozzle | 2 | 4 | 6 | 8 | 10 | 12 |
| Capacity（B/H) | 800-1000 | 1500-1800 | 1800-2500 | 2500-3000 | 3000-3600 | 3600-4200 |
| Filling Precision | Less Than 0.5% | |||||
| Power supply | 220V Single phase 50HZ 380V Three phase 50HZ | |||||
Main Configuration:
Mesa, around the side plates are of high quality 304 stainless steel or other FDA approval of material production, and material contact parts for 316L quality stainless steel.
| Automatic Servo Filling Machine | ||||
| No. | Descriptions | BRAND | ITEM | Remark (made in China) |
| 1 | Servo Motor | Panasonic | 0.45KW | Japan |
| 2 | Reducer | Fenghua | ATF1205-15 | Taiwan |
| 3 | Conveyor Motor | ZhenYu | YZ2-8024 | China |
| 4 | servo drivers | Panasonic | LXM 23DU15M3X | Japan |
| 5 | PLC | Siemens | TM218LDALCODR4PHN | German |
| 6 | Touch Screen | Siemens | HMZGXU3500 | German |
| 7 | Frequency Converter | Danfoss | ATV12H075M2 | |
| 8 | Photo electricity of Inspect bottle | OPTEX or equal brand | BRF-N | Japan |
| 9 | Pneumatic Element | Airtac | Taiwan | |
| 10 | Rotary Valve | F07/F05 | No Need for Oil | |
| 11 | Pneumatic actuator | F07/F05 | No Need for Oil | |
| 12 | Low-Voltage Apparatus | Schneider | FRANCE | |
| 13 | proximity switch | ROKO | SC1204-N | Taiwan |
| 14 | Bearing | China | ||
| 15 | Lead Screw | TBI | Taiwan | |
| 16 | Butterfly valve | CHZNA | China | |
1. This conveyor is easy to adjust for different volume bottle,and the coveyor is made of stainess steel which is very easy to clean.
2. The width of the guardrail on both sides of the conveyor belt should be adjusted according to the bottle size to ensure that the bottle can pass smoothly.

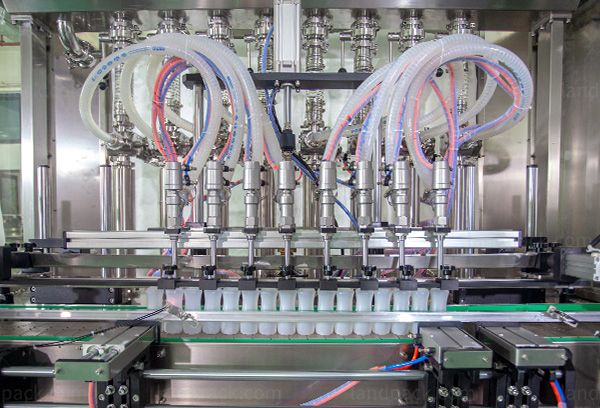

3. Every filling head has anti-drop design. It promise do not waste the material. And diameter of filling head basis on the diameter of customer’s barrel’s mouth.
4. When the bottle passes through the photoelectric sensor, the system automatically counts and executes the filling instructions. The corresponding filling station will not trigger the filling process without obtaining the photoelectric detection signal.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
