Piston Pump Inline Filler Linear Filling Machine Wtih Washing and Capping Machine
Model : LDALF-10
Application :
Applicable to medicine, cosmetic, food, pesticide and special industries such as Mouthwash, soy sauce, chemical, alcohol, cleaning material, agrochemical, pesticides, food and beverages, syrup, dairy, juice, cosmetic and relevant.
Application :
Applicable to medicine, cosmetic, food, pesticide and special industries such as Mouthwash, soy sauce, chemical, alcohol, cleaning material, agrochemical, pesticides, food and beverages, syrup, dairy, juice, cosmetic and relevant.
Packaging Material:
Glass, Metal, Paper, Plastic, Wood, and Others.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Sample:
| Model | LFZ-04 | LFZ-06 | LFZ-08 | LFZ-10 |
| Filling Range | 50-1000ml | |||
| Filling Speed | 15-25 bottles/min | 20-35 bottles/min | 30-40 bottles/min | 40-50 bottles/min |
| Measurement Accuracy | ±1% | |||
| Power | 220V, 50HZ, 2KW | 220V, 50HZ, 2.5KW | 220V, 50HZ, 3.5KW | 220V, 50HZ, 5KW |
| Working Pressure | 0.6mpa-0.8mpa | |||
| Weight | 600kg | 650kg | 800kg | 800kg |
| Size | L4000*W1320*H2090(mm) | |||
14-Head Bottle Washing Unit: Efficiently washes and air-dries bottles to ensure cleanliness before filling.

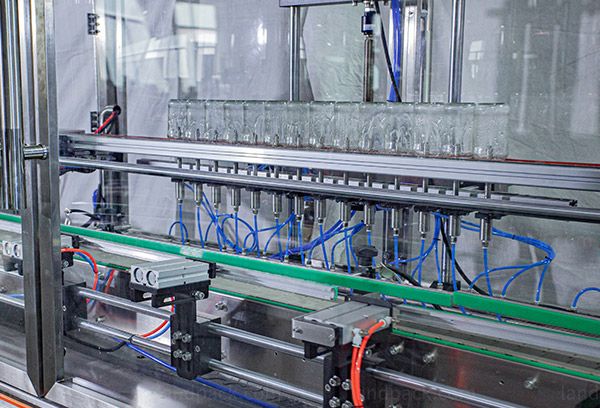

10-Head Piston Filling System: Delivers high-precision filling with ±1% accuracy; includes a total bottle counter and “no bottle, no fill” function.
Double 4-Wheel Capping Machine: Enhances capping speed and stability for consistent sealing.
Customized Conveyor & Bottle Turners: S-shaped conveyor belt and bottle turners designed to meet specific production requirements.
User-Friendly & Low Maintenance: PLC control with easy operation; maintenance requires no special tools.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
