Servo Controlled High Speed Inline Bottle Filling Machine for Chemical Liquid
Model: LF-LZ-06
Application:
This series of liquid filling machine for daily, food, oil, pesticides and other industries, can be filled with different types of liquid products, such as hand sanitizer, detergent, fruit juice, miller wine, soy sauce, ketchup, honey.
Advantages:
Compatible with various bottle types; one-key start, intelligent control, efficient canning; servo-driven, stable operation, accurate canning.
Application:
This series of liquid filling machine for daily, food, oil, pesticides and other industries, can be filled with different types of liquid products, such as hand sanitizer, detergent, fruit juice, miller wine, soy sauce, ketchup, honey.
Packaging Type: It is suitable for various materials, and various bottle types, and has a wide range of applications.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

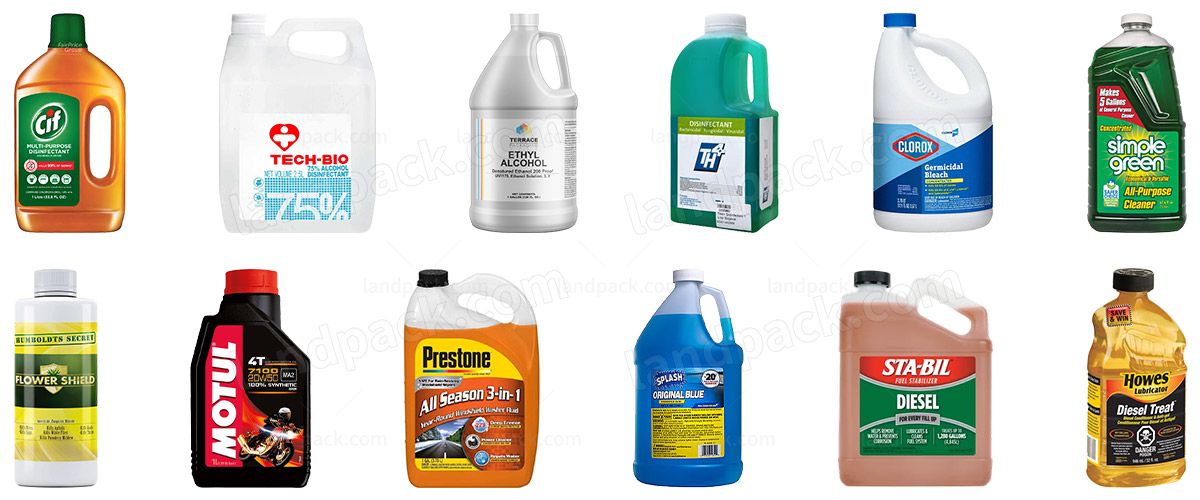

Packaging Samples
Machine Parameters:
| Filling Volume | 100ml-1000ml 250ml-2500ml 500ml-3000ml 500ml-5000ml | |||||
| Filling Material | olive oil, oil, lube oil, shampoo, sauce, tomato paste, ketchup, liquid milk, water, honey, juice, etc. | |||||
| Filling nozzle | 2 | 4 | 6 | 8 | 10 | 12 |
| Capacity（B/H) | 800-1000 | 1500-1800 | 1800-2500 | 2500-3000 | 3000-3600 | 3600-4200 |
| Filling Precision | Less Than 0.5% | |||||
| Power supply | 220V Single phase 50HZ 380V Three phase 50HZ | |||||
Main Configuration:
Mesa, around the side plates are of high quality 304 stainless steel or other FDA approval of material production, and material contact parts for 316L quality stainless steel.
| Automatic Servo Filling Machine | ||||
| No. | Descriptions | BRAND | ITEM | Remark (made in China) |
| 1 | Servo Motor | Panasonic | 0.45KW | Japan |
| 2 | Reducer | Fenghua | ATF1205-15 | Taiwan |
| 3 | Conveyor Motor | ZhenYu | YZ2-8024 | China |
| 4 | servo drivers | Panasonic | LXM 23DU15M3X | Japan |
| 5 | PLC | Siemens | TM218LDALCODR4PHN | German |
| 6 | Touch Screen | Siemens | HMZGXU3500 | German |
| 7 | Frequency Converter | Danfoss | ATV12H075M2 | |
| 8 | Photo electricity of Inspect bottle | OPTEX or equal brand | BRF-N | Japan |
| 9 | Pneumatic Element | Airtac | Taiwan | |
| 10 | Rotary Valve | F07/F05 | No Need for Oil | |
| 11 | Pneumatic actuator | F07/F05 | No Need for Oil | |
| 12 | Low-Voltage Apparatus | Schneider | FRANCE | |
| 13 | proximity switch | ROKO | SC1204-N | Taiwan |
| 14 | Bearing | China | ||
| 15 | Lead Screw | TBI | Taiwan | |
| 16 | Butterfly valve | CHZNA | China | |
1. Beautiful appearance, high filling accuracy, convenient adjustment, easy operation;
2. Servo controlled High Speed Inline Bottle Filling Machine interface, direct setting of fixed filling volume;
3. PLC program control, inverter speed regulation linear filling;
4. High-precision volumetric flowmeter, accurate and reliable quantitative;
5. Servo controlled High Speed Inline Bottle Filling Machine induction filling, leak-proof design, eliminate drawing and dripping;
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
