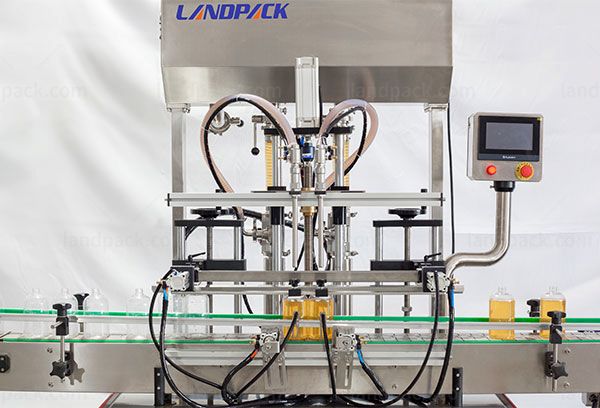

Automatic Piston Juice Filling Machine HIgh Quality Configuration Filling Machine
Model: LF-LH-002
Application:
This machine is equipped with servo motor and you just need to enter the certain number to adjust filling range.It is designed for filling paste like juice, curry paste, tomato sauce, honey, each nozzle can be controlled separately.
Application:
Automatic piston juice filling machine, can significantly reduce labor costs and improve production efficiency and easy to operate, maintain and clean.
Examples:
Juice, curry paste, tomato sauce, honey, essential oil and so on.
Kindly Reminder:
Please tell us the following information when you send us an inquiry. Based on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Your product
2. Filling Range
3. Bottle/Jar/Can material
4. Bottle/Jar/Can dimension
Packaging Examples:
Filling head | 2/4/6/8/10(Customizable) |
| Filling volume | 100-1000ml,500-5000ml(Customizable) |
| Filling speed | 500-5000 bottle per hour |
Voltage | 220V/380V,50-60HZ |
Powder | 2.6KW |
| Machine dimension | 19500*950*2200mm |
| Machine weight | 650KG |
1.Each stand-alone machine can be operated independtly and linked .
2.PLC control ,touch bottle operatation ,simple and convenient operation.
3.The use of internatioal famouse brand electrical components, performance and stability.
4.Machine body is made by 304 stainless steel, easy to clean, machine is full compliance with GMP requirements.
5.Peristaltic pump or piston pump filling system, measuring precision, convenient manipulation.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
