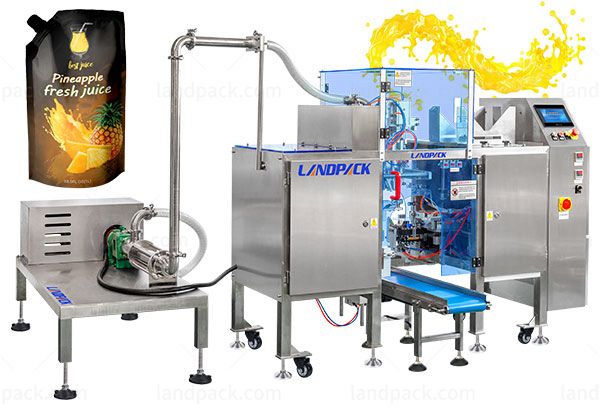

Economic Juice Premade Stand Up Pouch Doypack Filling Sealing Machine
Model: LG1-300L
Application:
Mini automatic juice pouch doy filling sealing packaging machine for premade/ stand up/ zipper/ spout bag.
Application:
Economic juice premade stand up pouch doypack filling sealing machine, it is designed to be easy to operate and maintain, with user-friendly controls and easy-to-replace parts.
Examples:
Juice, laundry detergent, ketchup, shampoo, sauce, hand sanitizer, coconut oil, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Examples:
| Type | Economic Liquid Premade Stand Up Pouch Doypack Filling Sealing Machine | ||
| LDB-200 | LDB-300 | LDB-430 | |
| Bag Material | Multi-layer Composite Premade Bag（e.g.: PET/PE） | ||
| Premade bag type | 3-sides sealing bag, stand-up bag） | ||
| Upgraded Bag Type | （Need additional purchase of functional device） | Gusset Bag, Zipper Bag, box bag (Need additional purchase of functional device | |
| Bag size | 70mm≤W≤150mm | 80mm≤W≤300mm | 80mm≤W≤300mm |
| 70mm≤L≤150mm | 100mm≤L≤300mm | 100mm≤L≤430mm | |
| Speed | 0~60bags/min | 0~15bags/min | |
| Sealing Type | Straight grain, pitch is 1mm (Optional reticulate) | ||
| Sealing Width | 10mm（5--20mm) can be customized | ||
| Voltage | 220V, Single-phase,50/60HZ, 1.2KW | ||
| Air Pressure | 0.65Mpa | ||
| Air Consumption | Standard machine, no additional function | ||
| Body Dimension | 1770*600*1230mm | 1770*600*1360mm | |
| Packing Dimension | 1860*710*1550mm | 1860*710*1650mm | |
| Export non-fumigation wooden case | |||
1. Easy to operate.
2. Automatic checking: no pouch or pouch open error, no fill, no seal, avoid wasting.
3. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.
4. Adjustable bag width.

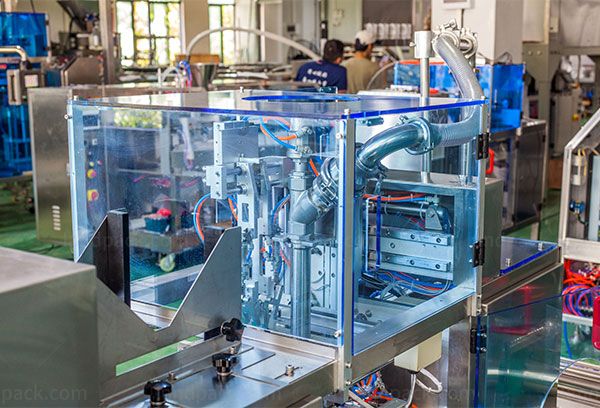

5. Glass safety door: It will stop working when you open the door, ensure the safety of operators.
6. Low loss of packing materials, high quality of the sealing part, to improved the product specification.
7. Different feeding hoppers: for solid, liquid, thick liquid ,powder and so on.
8. Bag materials: Suits in extensive range.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
