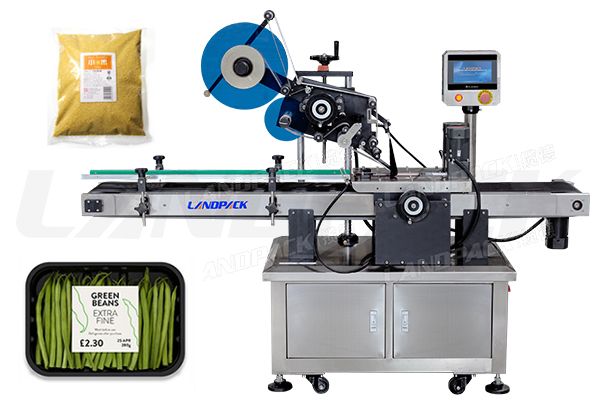

automatic flat labeling machine for plastic bag
Model: LFT-YP-013
The machine is suitable for round shaped containers such as sprayer bottles,PET bottles,glass bottles, tin can etc.It can be used to label all kinds of card pouch, anti-static bag and paper piece. It is suitable for unfolded carton labeling.
Application:
applicable to a variety of flat surface or small arc surface products on the plane labeling.such as:books,box,bags,folders,lunch boxes,square bottle of lid etc
Packaging Samples:
Label length | 10mm～300mm（can be customized） |
Label width | 10mm～150mm（can be customized） |
Product size | L50mm～280mm W50mm～200mm H0.2mm～3mm Can be customized |
Roll Label outer diameter | 300mm～350mm（can be customized） |
Roll Label inner diameter | 70mm～75mm（can be customized） |
Accuracy | ±1mm |
Label speed | 30～200pcs/min |
Conveyor speed | 5～25m/min |
Suitable label type | Adhesive sticker label(Transparent lable is available) |
Working air pressure | 0.4-0.6Mpa |
Voltage | 220VAC ±10 50HZ |
Power | 2000W |
Weight | 260KG |
Overall dimension | 3000mm×800mm×1600mm |
1.Applicable to a wide range of cards, paper sheets of PE bags, tin foil bags, tea bags and other items labeling, suitable for unfolded carton labeling.
2.Intelligent control, automatic photoelectric tracking, with no object and no sticker, no standard automatic correction and automatic label detection function, prevent leakage and label waste.
3.Sticker fast and steady, adopt the top roller to caress the workpiece, transport smoothly.
4.High stability, The supporting equipment runs 7 × 24 hour,Adopts famous brand configuration
We have many customer case videos, please feel free to contact us to obtain your product case videos.
