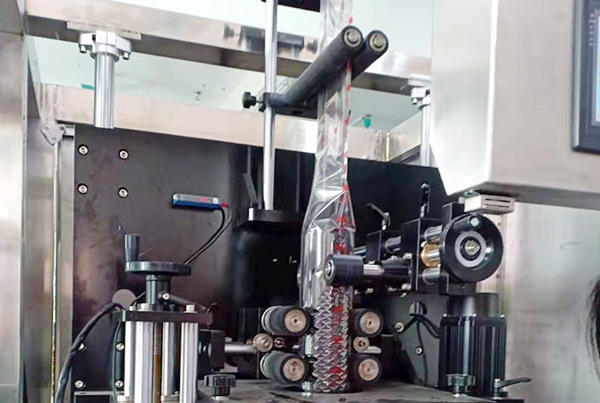

Full Automatic Shrink Sleeve Label Machine
Model: LFT-YP-P01
Introduction:
Suitable for Bottle Cap or Body Shrink Wrapping Labeling, A wide range of applications, suitable for food, beverages, cleaning supplies, medicines, bottles and other plastic bottles, glass bottles, PVC/ PET/ OPS, tin cans and other containers.
Application:
Full automatic shrink sleeve label machine(LFT-YP-P01), it is suitable for Bottle Cap or Body Shrink Wrapping Labeling, A wide range of applications, suitable for food, beverages, cleaning supplies, medicines, bottles and other plastic bottles, glass bottles, PVC/ PET/ OPS, tin cans and other containers.
Flexible choice of multi-bottle type: can sleeve round bottle, square bottle, elliptical bottle, etc. can also sleeve the bottle mouth or bottle body.
Attention:
This machine can work with automatic filling machine and capping machine, realizing automated production. Help to improve work efficiency. Please contact us if you need this. Thank you!.
Packaging Samples
| Full automatic shrink sleeve label machine(LFT-YP-P01) | ||||
| Model | LTB-C150 | LTB-C250 | LTB-C300 | LTB-C450 |
| Host size | 2100*850*2000 | 2100*850*2000 | 2100*1100*2200 | 2500*1200*2200 |
| Production speed | 150B/MIN | 200B/MIN | 300B/MIN | 450B/MIN |
| Suitable label material | PVC label / PET label / OPS Shrink label | |||
| Power Supply | 2.2kw | |||
| Framework material | Stainless Steel | |||
| Length of the label | 30mm~260mm | |||
| Thickness of the label | 0.03mm~0.13mm | |||
| Diameter of bottles | 28mm~125mm | |||
| High of bottles | 50mm~280mm | |||
| shape of bottles | Square, round, oval, flat bottle | |||
| Contraction furnace power | 18KW~36KW | |||
| Application | shrink sleeve labeling applicator | |||
1, the machine is made of stainless steel and high quality of aluminum alloy, the reasonable, intact frame, it is easy to adjust.
2, the feet bolt is not fixed, easy to move suitable for different place.
3, the shrinkable film roll with adjustable locking gear, can be adjusted according to different roll 5-10
4, the applicable bottle is the machine square bottle and round bottle
5, without tools, the driven machinery can be adjusted to meet different bottle size
6, particular inserting label ways, i.e. inserting label, it is reasonable and convenient.
7, full automatic feeder, the flat shrinking and tension are adjusted together.
8, it is assured to low error that there is inspection of rolling label cut.
9, particular blade design, blade base can be change by free, changing blade quickly and conveniently.
10, it is easy to change the central clamping device without any tools.
11, oriental rolling label device can be lifting synchronal.
12, the separating bottle screw, oriental belt and conveyor are adjusted synchronal, it is easy and quick to do.
13, adopting Schneider servo motor made in France and sensitive photo electricity, to insure the precision of cutting label.
14, stainless steel electric controller, adopting Mitsubishi PLC made in Japan
15, adopting advanced machine automatic controlling technology, main component adopts famous brand.
We have many customer case videos, please feel free to contact us to obtain your product case videos.
