Automatic Bottle Mayonnaise Filling Machine
Model: LF-LZ-08
Application:
Automatic bottle mayonnaise filling machine from Landpack can fill up to 16 containers at the same time with virtually any liquid product, from thin and foamy to thick and stringy. It is recommended for a wide variety of products including mayonnaise, ketchup, oil, yogurt, cream, tomato sauce, hot sauce, chili sauce, honey, etc.
Advantages:
The filling system is driven by a servo motor which assures high filling accuracy. It is controlled by the PLC, human interface, and easy operation.
Application:
Automatic bottle mayonnaise filling machine from Landpack can fill up to 16 containers at the same time with virtually any liquid product, from thin and foamy to thick and stringy. It is recommended for a wide variety of products including mayonnaise, ketchup, oil, yogurt, cream, tomato sauce, hot sauce, chili sauce, honey, etc.
Examples: Mayonnaise, ketchup, oil, yogurt, cream, tomato sauce, hot sauce, chili sauce, honey, etc.
Packaging Type: Barrel, Bottles, Cans, Capsule, Cartons, Stand-up Pouch
Packaging Material: Glass, Metal, Paper, Plastic, Wood, Other
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

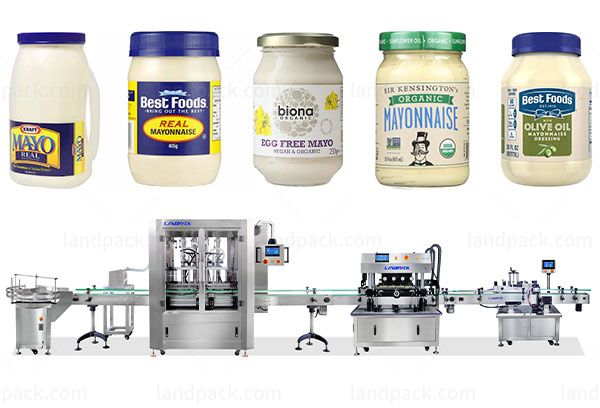

Packaging Samples
Machine Parameters:
| Filling Volume | 100ml-1000ml 250ml-2500ml 500ml-3000ml 500ml-5000ml | |||||
| Filling Material | Mayonnaise, ketchup, oil, yogurt, cream, tomato sauce, hot sauce, chili sauce, honey, etc. | |||||
| Filling nozzle | 2 | 4 | 6 | 8 | 10 | 12 |
| Capacity（B/H) | 800-1000 | 1500-1800 | 1800-2500 | 2500-3000 | 3000-3600 | 3600-4200 |
| Filling Precision | Less Than 0.5% | |||||
| Power supply | 220V Single phase 50HZ 380V Three phase 50HZ | |||||
Main Configuration:
Mesa, around the side plates are of high quality 304 stainless steel or other FDA approval of material production, and material contact parts for 316L quality stainless steel.
| Automatic Servo Filling Machine | ||||
| No. | Descriptions | BRAND | ITEM | Remark (made in China) |
| 1 | Servo Motor | Panasonic | 0.45KW | Japan |
| 2 | Reducer | Fenghua | ATF1205-15 | Taiwan |
| 3 | Conveyor Motor | ZhenYu | YZ2-8024 | China |
| 4 | servo drivers | Panasonic | LXM 23DU15M3X | Japan |
| 5 | PLC | Siemens | TM218LDALCODR4PHN | German |
| 6 | Touch Screen | Siemens | HMZGXU3500 | German |
| 7 | Frequency Converter | Danfoss | ATV12H075M2 | |
| 8 | Photo electricity of Inspect bottle | OPTEX or equal brand | BRF-N | Japan |
| 9 | Pneumatic Element | Airtac | Taiwan | |
| 10 | Rotary Valve | F07/F05 | No Need for Oil | |
| 11 | Pneumatic actuator | F07/F05 | No Need for Oil | |
| 12 | Low-Voltage Apparatus | Schneider | FRANCE | |
| 13 | proximity switch | ROKO | SC1204-N | Taiwan |
| 14 | Bearing | China | ||
| 15 | Lead Screw | TBI | Taiwan | |
| 16 | Butterfly valve | CHZNA | China | |
Bottle Filling Machine is adjustable for many different types of bottles
Easy to maintain, no special tools are required.
No bottle, no filling, automatic PLC control.
Filling nozzles are anti-drops, silk, and auto-cut viscous liquid.
Perfect filling precision: Less than 0.5%.
Special seals or hoses are adapted if the liquid is corrosive.
Diving nozzles for bottom-up filling of foaming products if needed.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
