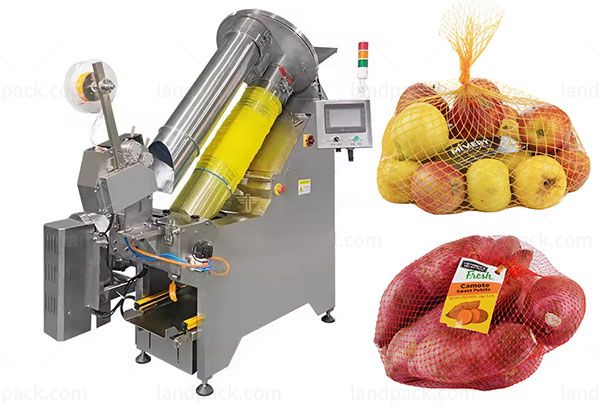

Automatic Net Clipping Machine Potato Orange Chocolate Mesh Bag Packing Machine
Model: LD-5/G-35
Introduction:
The unit speed of the bagged packaging equipment can reach 40 bags/minute at the fastest (the packaging speed of different products is different, and the actual number of packages shall prevail).
Application:
Applicable for net bag packaging vegetables, fruits, oranges, apples, jelly, garlic, chocolate, potato and hardware accessories that do not need to be sealed and airtight.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
| Packing weight | 0.5kg-5kg |
| Packaging materials | Vegetables, fruits, oranges, apples, jelly, garlic, chocolate, potato and hardware accessories that do not need to be sealed and airtight. |
| Perimeter of net bag | 380/400mm |
| Maximum length of the net bag installed on the tube | 200m |
| Packaging speed | 25-40 BPM |
| Weight | 450kg |
| Machine dimension | 1830mm*1128mm*1849mm |
Features:
1. Constructed from hard carbon steel plate and stainless steel, ensuring safety, hygiene, and enhanced corrosion resistance.
2. Automatically replace the net bag after use.
3. Uses AirTAC pneumatic components, known for their stable performance and long service life.
4. Features a combination of two positioning gears and proximity switches for precise net positioning.
5. Equipped with an LS inverter and Schneider PLC with touchscreen control for reliable and convenient operation.
6. Provides standardized packaging sizes.
7. Allows for quick and easy replacement of packing ties.
8. User-friendly operation interface that is simple and convenient.
Working Process:

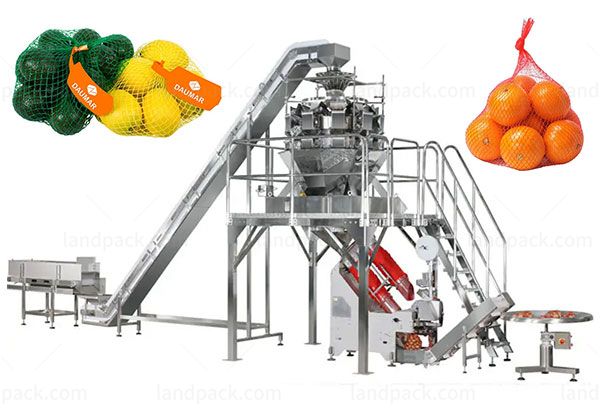

The work flow is as follows: After the manual sorting of products, the conveyor belt where the materials are placed in the middle is sent to the net bag packing machine by the lift conveyor belt, and the set label is automatically printed when the automatic packaging is completed. The manual framing is performed to complete the standardized packaging of products.
We have many customer packaging & filling case videos, please feel free to contact us to obtain your product packaging & filling case videos.
