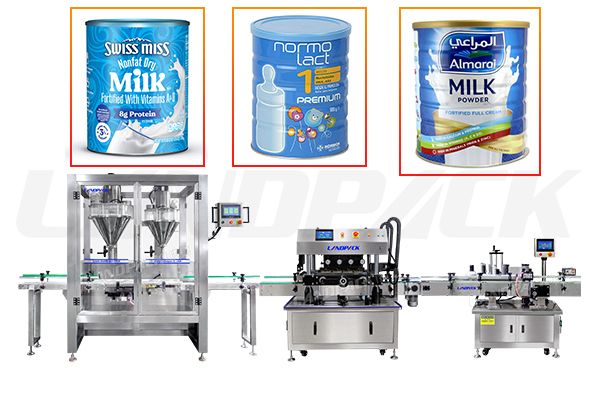

Automatic Milk Powder Tin Weighing Filling Machine Line
Model: LF-PJ-022
Application:
Milk Jar Volumetric Piston Filler Herb Screw Filling Machine Milk Powder Production Line is widely applied for and so on.
Advantages:
The powder filling machine is designed in accordance with the national GMP standard. The machine can be combined with the bottling machine, the cap pressing machine, the labeling machine and other equipment to compose pipeline.
Application:
It is suitable for filling powdered materials such as milk powder, glucose, protein powder, cocoa powder, coffee powder, rice powder, solid drink and so on.
Examples: Milk powder, protein powder, coffee powder, medicine powder, chemical powder, meal replacement powder, etc.
Packaging Type: Cans, Barrel, Bottles, Capsule, Cartons, Stand-up Pouch
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Samples:
| Multifunction Automatic Powder Filling Machine 99.9% Filling Precision (LF-PJ-02) | |
| Model | LF-PJ-02 |
| Filling Weight | 10-5000g(customizable) |
| Bottle diameter | Φ30-Φ140mm(customizable) |
| Bottle height | 50mm-200mm(customizable) |
| Yield | 10-20 Bottle/min |
| Measurement accuracy | ≤500g，≤±1%；＞500g，≤±0.5% (Varies due to the characteristics of the material) |
| Power | 2.5KW |
| Silo capacity | 50L |
| Power Supply | 220V/380V、50Hz/60Hz |
| Working Pressure | 0.6-0.8MPa |
| Weight | 380kg |
1.All stainless steel structure,easy to disassemble and clean.
2.High precision servo motor control filling, accurate metering.
3.A variety of product adjustment parameters formula can be stored, ready for later use.
4.The replacement of spiral accessories can adapt to a variety of materials such as ultrafine powder to small particles.
5.Touch screen PLC control, no bottle, no filling, no cover.
6.Can be applied to food, medicine and corrosive chemical raw materials. Centralized dust removal, no dust pollution in the workshop.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
