Fully Automatic Milk Powder Probiotic Powder Stick Bag Packaging Boxing Line System
Model: LD-480Y-2
Application:
The automatic stick bag packaging boxing line is suitable for filling various powder products, such as Milk powder, protein powder, nutritional powder, coffee powder, medicine powder, chemical powder, meal replacement powder, etc.
Application:
The automatic stick bag packaging boxing line is suitable for filling various powder products, such as Milk powder, protein powder, nutritional powder, coffee powder, medicine powder, chemical powder, meal replacement powder, etc.
Packaging Line Composition:

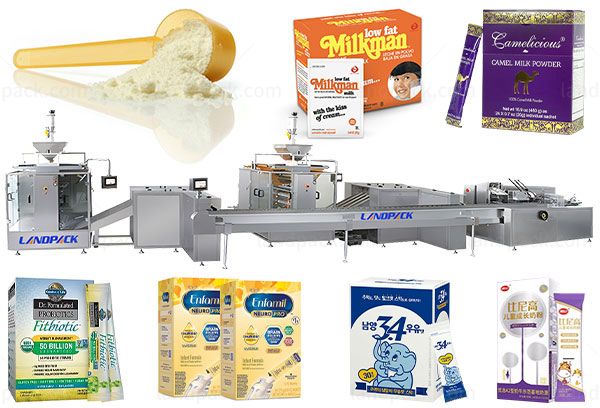

This packaging and boxing system consists of LD-480Y-2 Multi-lane powder and fine granule stick pack packaging machine, a sorting bag equipment and LD200ZH boxing machine. It can realize stick packed packaging into a box.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
| Multilane Packing Machine | |
| Model | LD-480Y-2 |
| Pouch Length | 50-120 (adjustable) |
| Pouch Width | 50-105 mm |
| Packing Speed | 60 time/min(depend by pouch size & material) |
| Filling Capacity | 0.5-50ml |
| Application Film | PET/ AL /PE, PET/PE, NY/AL/PE, NY/PE |
| Max Film Width | 900mm |
| Max Film Diameter | φ300mm |
| Film Core Diameter | φ75mm |
| Electric Source | 380v, 50hz (do as customer's request) |
| Total Powder | 15kw |
| Overall Dimension | 2200*1700*2250mm(L*W*H) |
| Machine Weight | 1500 kg |
| Packaging size | 1650*1500*2200mm(L*W*H) |
| Cartoning Machine Parameters | |
| Encasing Speed | 30-100 cartons/min |
| Carton - Quality Requirement | 250-350 g/m³ (Base on sachet or pouch size) |
| Carton - Dimension Range (L*W*H) | (70-180)mm*(35*120)mm*(14-50)mm |
| Leaflet - Quality Requirement | 60-70 g/㎡ |
| Leaflet - Unfolded leaflet specification | (80-250)mm*(90-170)mm |
| Leaflet - Fold range | 1-4 fold |
| Compressed air - Working pressure | ≥0.6Mpa |
| Compressed air - Air consumption | 200-240 L/min |
| Power supply | 220V, 50Hz |
| Motor supply | 1.1 KW |
| Machine dimension (L*W*H) | 3100*1100*1550mm |
| Machine weight | about 1400kg |
1. It can automatically finish measuring, bag making, sealing, cutting, counting, finishing product conveyor, and other functions.
2. The heat-generating parts and moving parts are hidden in the protective cover.
3. The contact part of the box and material is made of stainless steel, which meets the requirements of medicines and food production.
4. The equipment is equipped with casters for easy handling and movement.
5. Automatic alarm protection, saving materials, and no wasting film.
We have many different kinds of powder customer packing case videos, please feel free to contact us to obtain your product packing case videos.
