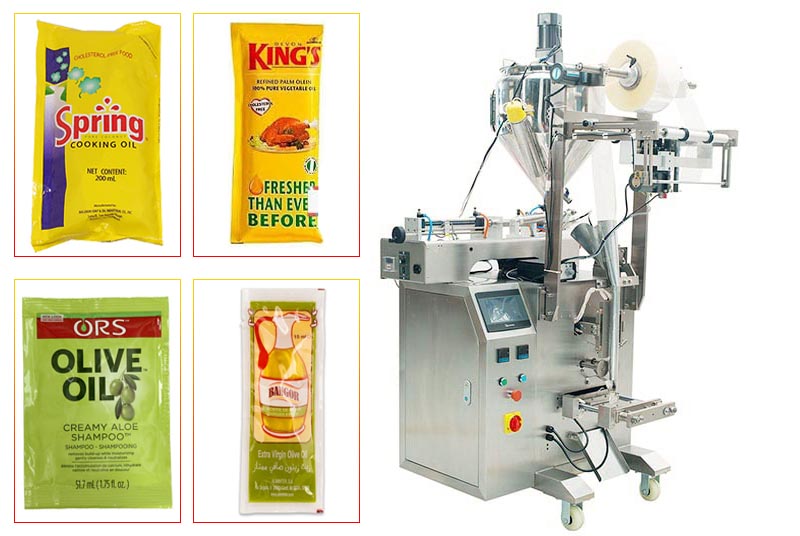

Automatic 50-500ml Liquid Sachet Packing Machine
Model: LD-320L
Application:
Automatic 50-500ml liquid sachet packing machine, it is suitable for packing all kinds of liquid material such as oil, sauce, tomato paste, ketchup, liquid milk, water, honey, juice, etc. Various bag types are available, e.g. back-sealing bags, 3 sides-seal bags, 4 sides seal bags, stick bags, linking bags, etc.
Details:
Film width:120-320mm; Bag length:50-200mm; Bag width:50-150mm; Diameter of film roll:Max.300mm; Packing speed:35-70bag/min; Measuring range:50-500ml; Film thickness :0.04-0.07mm
Application:
Automatic 50-500ml liquid sachet packing machine, it is suitable for packing all kinds of liquid material such as oil, sauce, tomato paste, ketchup, liquid milk, water, honey, juice, etc. Various bag types are available, e.g. back-sealing bags, 3 sides seal bags, 4 sides-seal bags, stick bags, linking bags, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Samples
Model | LD-320L | LD-380L |
Film width | 120-320mm | 180-380mm |
Bag length | 50-200mm | 60-280mm |
Bag width | 50-150mm | 60-180mm |
Diameter of film roll | Max.300mm | Max.320mm |
Packing speed | 35-70bag/min | |
Measuring range | 50-500ml | 50-750ml |
Film thickness | 0.04-0.07mm | |
Power | 220V 50/60Hz 2.2KW | 220V 50/60Hz 2.5KW |
Machine size(L*W*H) | 970*680*1950mm | 1100*800*2150mm |
Machine weight | About 300kg | About 450kg |
1. Computer PLC control and automatic alarming function.
2. Multilingual screen display, easy operation.
3. High sensitivity photoelectric eye color tracing, more accuracy.
4. Bag type can be customized to 3 or 4 sides sealing bag, pillow bag, long stick bag, link bag, etc.
5. Famous brand components, ensure the quality and durability of the machine.
6. Weight measuring, bag making, filling, sealing, cutting, and bag counting can be done automatically.
7. Ribbon code printer and link-bag device are options.
8. Multipurpose packaging, suitable for various packaging of different products.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
