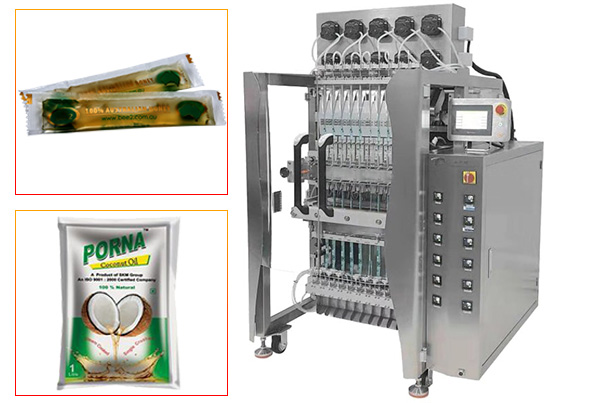

Automatic Multilane Liquid Stick Packing Machine

Model: LD-560BY

Application:

Suitable for automatic high-speed multilane liquid stick packing, such as oil, vinegar, liquid seasoning, sauce, ketchup, Jam, paste, honey, cream, milk, butter, water, shampoo, jelly, etc.

Main Function:

Automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.

E-mail: [email protected]

Tel/Whtasapp: +86 173 8860 2385

Get Price Send Email
  • Application
  • Description
  • Features
  • Videos

Application:

Suitable for automatic high-speed multilane liquid stick packing, such as oil, vinegar, liquid seasoning, sauce, ketchup, Jam, paste, honey, cream, milk, butter, water, shampoo, jelly, etc.

Kindly Reminder:

We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Samples

oil stick packing machine

Model: LD-280BY/ 560BY

Lane number: 4-6 Line/ 8-12 Line

Filling Method: 1. Piston pump; 2. Peristaltic pump

Capacity: Max.35 cycles/ min

Sachat Size: L:50-180mm; W:17-30mm

Film width & Thickness: Max.560mm, 0.07-0.10mm

Sealing type: Back sealing/Stick bag

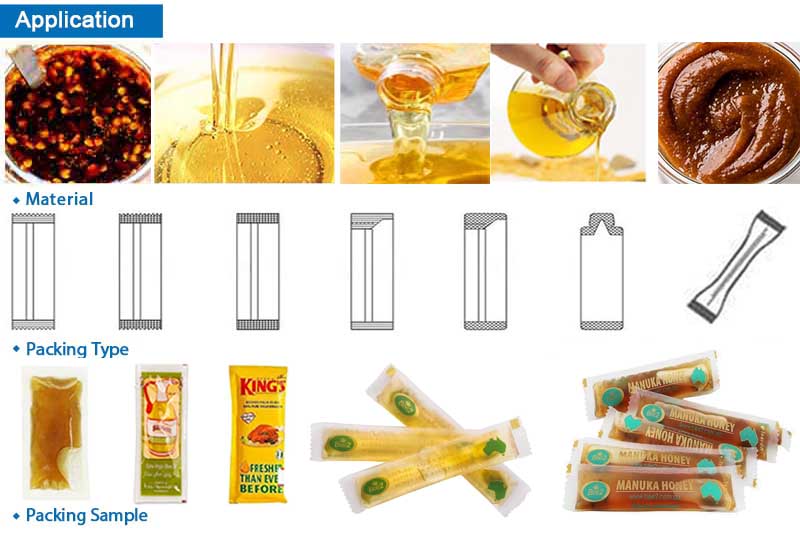

Cutting type: 1. Straight cutting; 2.Zig zag cutting; 3.Round cutting;   4. Irregular

Air & Powder: 0.8Mpa 0.8m3/min; 3.5kw

Multi lanes machines can produce multi lanes bags at the same time.

Machine main function: automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.

Other functions: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step, etc.

The stainless steel contact part and the machine's outer shell, have high features for a liquid running environment.

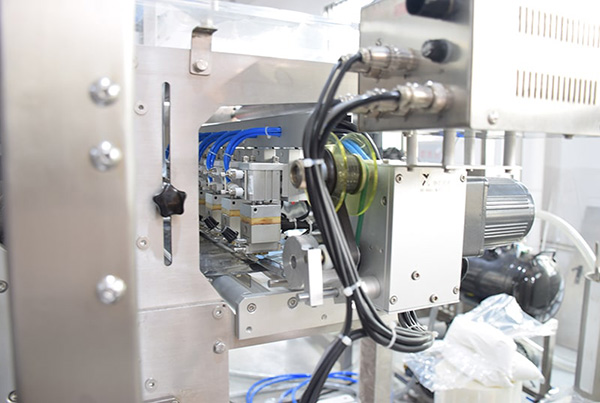

High-precision photocell sensor for auto-tracking the eye mark printing on the film roll, so cut each bag at a precise position.

PLC controller, high function and control the whole machine’s work steps.

We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.

After receiving your inquiry, We will send you the quotation as soon as possible.
