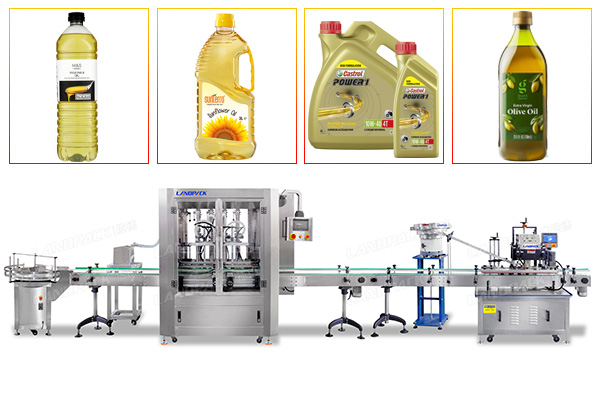

Automatic Oil Bottle Filling and Capping Machine

Application:

Automatic oil bottle filling and capping machine(LFH-TJ-4), it is suitable for filling various oils and viscous liquids, such as edible oil, cooking oil, mustard oil, paint, honey, cream, paste, sauce, lubricating oil, daily chemicals, and other liquid products.

Packaging Type: Bottles, Cans, Tins, Barrel, Capsule, Cartons, Stand-up Pouch

Packaging Material: Glass, Metal, Paper, Plastic, Wood, Other

Kindly Reminder:

We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Samples

Parameters:

1. This production line adopts automation technology, imported PLC, imported inspection light eye, frequency converter and other electrical appliances, and pneumatic components. It has the characteristics of high efficiency, intelligence, wide adaptability, good stability, etc., and is well-received by users;

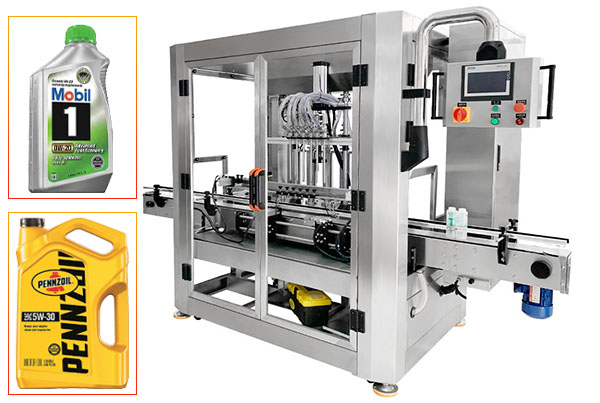

2. This line uses automatic bottle feeding, a 4-head servo piston filling machine, a vibrating plate automatic capping, and a four-wheel capping machine to form an automated production line;

3. The filling machine uses food-specific hoses and does not contain plasticizers, which is suitable for medicine, food, and other industries;

4. The piston cylinder of the filling machine adopts a grinding and wear-resistant metering cylinder, which can automatically compensate the piston seal for long life;

5. The production line has stable operation, low noise, convenient maintenance, fully meets the requirements of GMP certification, and is widely used in medicine, food, cosmetics, and other industries;

6. The whole machine is made of corrosion-resistant stainless steel, which is easy to clean and disinfect, and meets the national regulations and requirements on food machinery and food hygiene;

7. Imported PLC and 7-inch touch screen man-machine interface, production parameterized control, simple operation;

8. Different improvements can be made according to the different requirements of customers and can be made into equipment that fully meets the needs of customers. The plexiglass cover of the whole machine is designed to prevent impurities from entering the filling material, which is safe and hygienic.

We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
