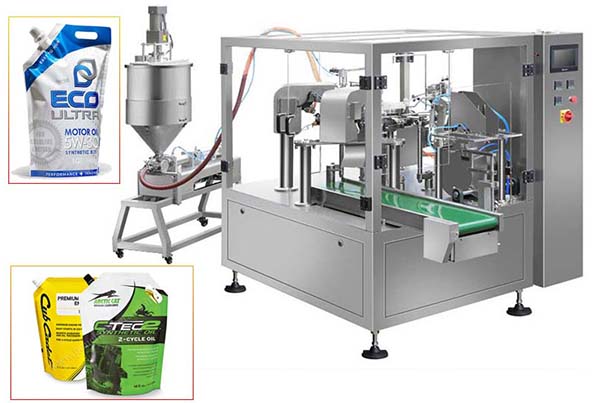

Automatic Oil Premade Pouch Rotary Packing Machine
Model: LD-8200L
Application:
Automatic oil premade pouch rotary packing machine(LD-8200L), It is suitable for all kinds of pre-made pouches, and liquid packing, such as oil, edible oil, coconut oil, cooking oil, mustard oil, engine oil, vegetable oil, beverage, tomato sauce, peanut butter, jam, paste, etc.
Application:
Automatic oil premade pouch rotary packing machine(LD-8200L), It is suitable for all kinds of pre-made pouches, and liquid packing, such as oil, edible oil, coconut oil, cooking oil, mustard oil, engine oil, vegetable oil, beverage, tomato sauce, peanut butter, jam, paste, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Samples
| Model | LD-8200/LD-8250 |
| Packing material | 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc |
| Size | W：70-200/100-250 |
| Filling range | 10-1000g/20-2500g |
| Packing speed | 40-60bag/min（speed is determined by the product filling quantity） |
| Average precision | ≤ ±1% |
| Total power | 2.5KW |
| Dimensions | 1900mm X 1570mm X 1700mm（L*W*H） |
| Workflow | giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product |
| Main standard parts | 1. Code printer 2. PLC control system 3. Bag opening device 4. Vibration device 5. Cylinder 6. Electromagnetic valve 7. Temperature controller 8. Vacuum pump 9. Inverter 10. Output system |
1. Wide range of pouches: All kinds of pre-made pouches such as flat and stand-up pouches (with/without zip).
2. Easy to operate: PLC and color panel, fault indication on the panel.
3. Easy to adjust: Only about 10 minutes to change different pouches.
4. Frequency control: Speed can be adjusted by frequency conversion within the range.
5. Waterproof design: The machine surface can be washed down, so easy cleaning and longer useful life.
6. No pouch/incorrect pouch opening-no fill-no seal, machine alarm.
7. Machine alarm and stop when the inadequate air pressure.
8. Safety guards with safety switches, machine alarms, and stops when the safety guards are opened.
9. Hygienic construction, the product contact parts are adopted sus304 stainless steel.
10. Imported engineering plastic bearings, no need for oil, no contamination.
11. Oil-free vacuum pump, avoid the pollution of the production environment.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
After receiving your inquiry, We will send you the quotation as soon as possible.
