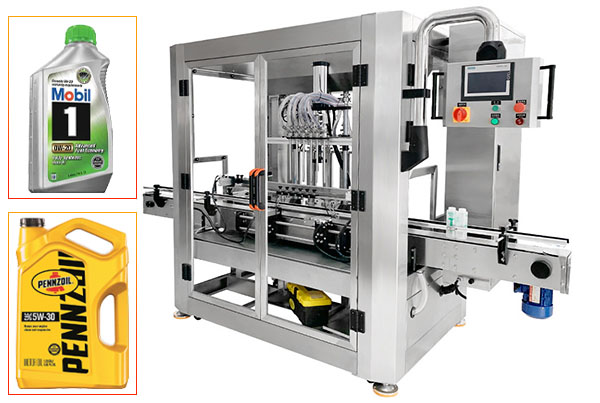

Automatic Piston Servo Engine Oil Bottle Filling Machine
Model: LF-LH-06
Application:
Automatic Piston Servo Engine Oil Bottle Filling Machine (LF-LH-06), is suitable for the automatic filling of various bottle types in paste and liquid form. It is also suitable for canning corrosive liquids.
Advantages:
Compatible with various bottle types; one-key start, intelligent control, efficient canning; servo-driven, stable operation, accurate canning.
Application:
Automatic Piston Servo Paste Liquid Filling Machine is suitable for the automatic filling of various bottle types in paste and liquid form. It is also suitable for canning corrosive liquids.
Examples: engine oil, lube oil, lubricant oil, brake oil, brake fluid, shampoo, honey, laundry liquid, shower gel, lotion, specialty chemicals, paint, inks, automobile glass water, corrosive chemicals i.e. acids and bleach.
Packaging Type: It is suitable for various materials, and various bottle types, and has a wide range of applications.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Samples
Main structure of automatic piston filler
1. 20L to 200L Top hopper for option, double Jacket hopper with heating and mixing system for option;
2. Main body of machine made by 304SS;
3. Filling nozzles, filling nozzles are specially designed for anti-drop sauce filling;
4. Filling nozzles moving up and down by air cylinder, and servo motor moving up and down for option;
5. PLC control system, and HMI operation;
6. Especially made horse and valve for honey, with CIP system connection;
Machine Parameters:
Model | LF-LH-06 |
Filling Speed | 20-80 bottles/min |
Air Pressure | 0.4-0.8mpa |
Filling Error | 1% |
Filling Range | 50-1000ml |
Filling Way | Piston |
Control Method | Touch control |
Number of Filling Heads | 6 heads (customizable) |
Feeding Method | Automatic feeding |
Electrical Components | Schneider |
Power Supply | 380V50Hz 2.5KW |
Equipment Weight | 1000kg |
Equipment size | 3000*1300*2100mm |
1. Simple structure in linear type, easy to install and maintain.
2. Piston filling method, accurate and stable, suitable for thick material.
3. The filling range and speed can be designed according to user needs to design different filling head numbers.
4. Adopting advanced world-famous brand components in pneumatic parts, electric parts, and operation parts.WEINVIEW touchscreen, MITSUBISHI PLC, CHNT switch, etc.
5. The whole machine is made of SS304 material, and can meet the requirement of GMP.
6. Can be used for filling containers of different capacities and shapes without the need for additional replacement parts.
7. It can be used alone or connected to production lines, and can be combined with a capping machine, labeling machine, date printer, etc.
8. Easy to clean, all material contact parts can be quickly disassembled and cleaned.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
After receiving your inquiry, We will send you the quotation as soon as possible.
