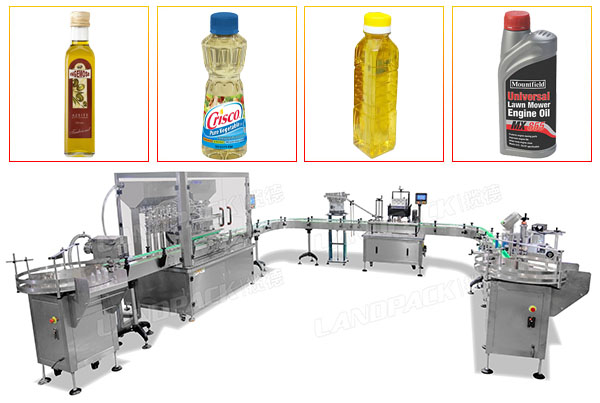

Full Automatic Oil Bottle Filling Capping And Labeling lines
Model: LD-FL-10
Application:
Suitable for automatic filling, capping, and labeling of various liquid products. Round, flat, square, and other shaped bottles, cans, boxes, and jars.
Advantages:
This liquid filling line is driven by a servo motor to ensure high filling accuracy. It is controlled by PLC, a man-machine interface, and is easy to operate. The filling volume can be changed by replacing the screw gauge, and the measuring range is wide.
Application:
Full automatic bottle filling capping and labeling lines(LD-FL-10), it is suitable for automatic filling, capping, and labeling of various liquid products. Round, flat, square, and other shaped bottles, cans, boxes, and jars.
Examples: edible oil, cooking oil, mustard oil, engine oil, lube oil, lubricant oil, brake oil, brake fluid, hand sanitizer, distilled spirits, lubricate oil, edible oil, liquid detergent, shampoo, tomato sauce, salad sauce. etc.
Packaging Type: Cans, Tins, Barrel, Bottles, Capsule, Cartons, Stand-up Pouch
Packaging Material: Glass, Metal, Paper, Plastic, Wood, And Others
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Samples
Parameters:
Model | LFZ-06 | LFZ-08 | LFZ-10 | LFZ-12 |
Filling Range | 50-1000ml (customizable) | 50-1000ml (customizable) | 50-1000ml (customizable) | 50-1000ml (customizable) |
Filling Speed | <30 bottles/min (customizable) | <40 bottles/min (customizable) | <50 bottles/min (customizable) | <60 bottles/min (customizable) |
Measurement Accuracy | ±1% | ±1% | ±1% | ±1% |
Power | 1KW | 1.2KW | 1.2KW | 1.5KW |
Power Supply | 220V、50Hz | 220V、50Hz | 220V、50Hz | 220V、50Hz |
Working Pressure | 0.6-0.8MPa | 0.6-0.8MPa | 0.6-0.8MPa | 0.6-0.8MPa |
Weight | 400kg | 450kg | 500kg | 550kg |
1. Stronger PLC software support, may realize the ideal filling operation.
2. The touching operation color screen, can display the production state, operation procedures and filling ways, tableau objective, operation simple, and maintenance convenient.
3. This China's most popular product simplex filler machine jar filling machines automatic liquid filling machine uses vacuum sucking technology to ensure no leakage of the filling head during the filling production process.
4. Each filling head is equipped with a bottle-mouth-clamping device, ensuring the injecting material correctly aiming at.
5. This machine suits for the filling of different sizes of vessels, and may change the filling sizes within a few minutes.
6. Pivotal electrical part use world-famous brands such as Mitsubishi, OMRON, and SIEMENS.
7. Optional servo filling system.
