Automatic Piston Servo Thick Paste Bottle Filling Machine

Model: LF-LH-06

Application:

Automatic Piston Servo Engine Oil Bottle Filling Machine (LF-LH-06), it is suitable for automatic filling of various bottle types in paste and liquid form. It is also suitable for canning corrosive liquids.

Advantages:

Compatible with various bottle types; one-key start, intelligent control, efficient canning; servo-driven, stable operation, accurate canning.

E-mail: [email protected]

Tel/Whtasapp: +86 173 8860 2385

Get Price Send Email
  • Application
  • Description
  • Features
  • Videos

Application:

Automatic Piston Servo Paste Liquid Filling Machine is suitable for automatic filling of various bottle types in paste and liquid form. It is also suitable for canning corrosive liquids.

Examples: chili sauce, mushroom sauce, spicy sauce, seafood sauce, beef sauce, bean paste, tomato paste, bbq sauce, ginger garlic paste, chutney, mayonnaise, tempeh sauce and other sauce products.

Packaging Type: It is suitable for various materials, various bottle types, and has a wide range of applications.


Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.


Packaging Samples

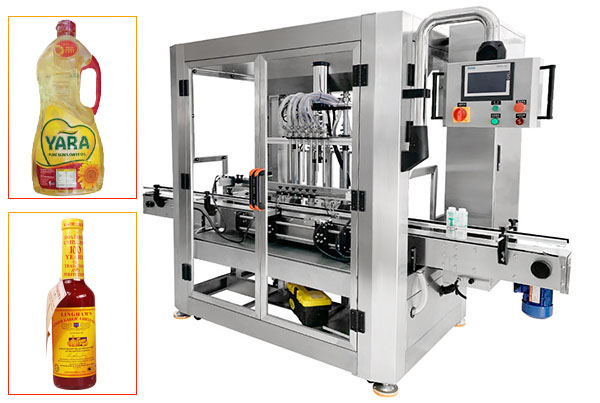

Automatic Piston Servo Engine Bottle Filling Machine

Main structure of automatic piston filler

1. 20L to 200L Top hopper for option, double Jacket hopper with heating and mixing system for option;

2. Main body of machine made by 304SS;

3. Filling nozzzles, filling nozzles are specially design for anti-drop sauce filling;

4. Filling nozzles moving up and down by air cylinder, and servo motor moving up and down for option;

5. PLC control system, and HMI operation;

6. Specially made horse and valve for honey, with CIP system connection;


Machine Parameters:

ModelLF-LH-06
Filling Speed20-80 bottles/min
Air Pressure0.4-0.8mpa
Filling Error1%
Filling Range50-1000ml
Filling WayPiston
Control MethodTouch control
Number of Filling Heads6 heads (customizable)
Feeding MethodAutomatic feeding
Electrical ComponentsSchneider
Power Supply380V50Hz 2.5KW
Equipment Weight1000kg
Equipment size3000*1300*2100mm

1.Simple structure in linear type ,easy in installation and maintenance.

2.Piston filling method, accurate and stable, suitable for thick material.

3.The filling range and speed can be designed according to user needs to design different filling head number.

4.Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.WEINVIEW touchscreen,MITSUBISHI PLC,CHNT switch,etc.

5.The whole machine is made of SS304 material,can meet the requirement of GMP.

6.Can be used for filling containers of different capacities and shapes without the need for additional replacement parts.

7.It can be used alone or connected to production lines, and can be combined with capping machine, labeling machine, date printer,etc.

8.Easy to clean,all material contact part can be quick disassemble and cleaning.

We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
