Fully Automatic Multilane Powder Bagging And Cartoning Packaging Machine Line System
Model: LD-480Y-2
Application:

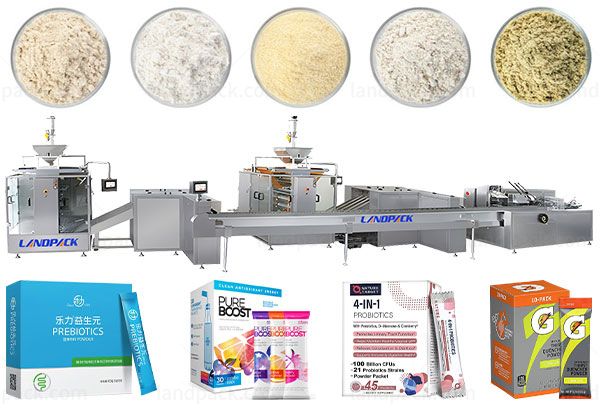

Automatic multi-lane stick pack powder packaging and boxing production line is suitable for automatic packing of powder: flour, spices, wheat flour, coffee powder, milk powder, food additives, condiments, coconut powder, pesticide powder, etc.
Application:
Automatic multi-lane stick pack powder packaging and boxing production line is suitable for automatic packing of powder: flour, spices, wheat flour, coffee powder, milk powder, food additives, condiments, coconut powder, pesticide powder, etc.
Packaging Line Composition:

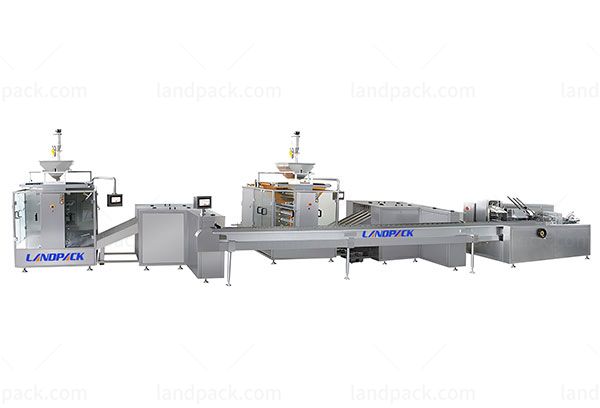

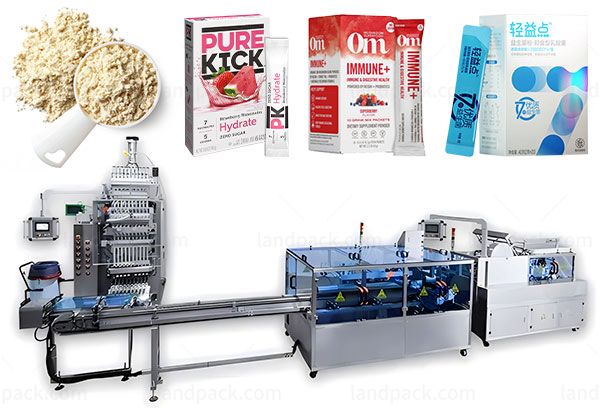

This packaging and boxing system consists of LD-480Y-2 Multi-lane stick pack fine granule packaging machine, a sorting bag equipment and LD200ZH boxing machine. It can realize stick packed packaging into a box.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
| Multilane Packing Machine | |
| Model | LD-480Y-2 |
| Pouch Length | 50-120 (adjustable) |
| Pouch Width | 50-105 mm |
| Packing Speed | 60 time/min(depend by pouch size & material) |
| Filling Capacity | 0.5-50ml |
| Application Film | PET/ AL /PE, PET/PE, NY/AL/PE, NY/PE |
| Max Film Width | 900mm |
| Max Film Diameter | φ300mm |
| Film Core Diameter | φ75mm |
| Electric Source | 380v, 50hz (do as customer's request) |
| Total Powder | 15kw |
| Overall Dimension | 2200*1700*2250mm(L*W*H) |
| Machine Weight | 1500 kg |
| Packaging size | 1650*1500*2200mm(L*W*H) |
| Cartoning Machine Parameters | |
| Encasing Speed | 30-100 cartons/min |
| Carton - Quality Requirement | 250-350 g/m³ (Base on sachet or pouch size) |
| Carton - Dimension Range (L*W*H) | (70-180)mm*(35*120)mm*(14-50)mm |
| Leaflet - Quality Requirement | 60-70 g/㎡ |
| Leaflet - Unfolded leaflet specification | (80-250)mm*(90-170)mm |
| Leaflet - Fold range | 1-4 fold |
| Compressed air - Working pressure | ≥0.6Mpa |
| Compressed air - Air consumption | 200-240 L/min |
| Power supply | 220V, 50Hz |
| Motor supply | 1.1 KW |
| Machine dimension (L*W*H) | 3100*1100*1550mm |
| Machine weight | about 1400kg |
1. It is suitable for automatic connection and boxing of 3/4 side sealing bags or stick packs. Online can complete automatic vacuum feeding, bag making, filling, batch numbering, cutting and tearing, bag-shaped punching, bag picking arrangement and transmission, single bag weighing, missing and less filling removal, automatic counting of finished bags, stacking and transferring, manual-folding, carton forming, finished product bag boxing, batch number imprinting, carton packaging, waste rejection, finished product output, product counting, etc. can be automatically completed.
2. Adopt brand PLC control, and automatic counting, to ensure the stable work of the machine and easy maintenance.
3. The main components with stainless steel, and corrosion resistance, to adapt to the different environments of the workshop.
4. The machine adopts a module structure design to meet the customized needs of customers.
5. To control accuracy and convenient adjustment, the main parts are controlled by servo motors.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
