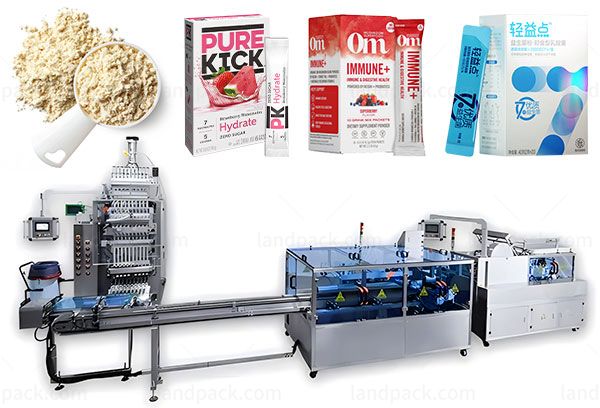

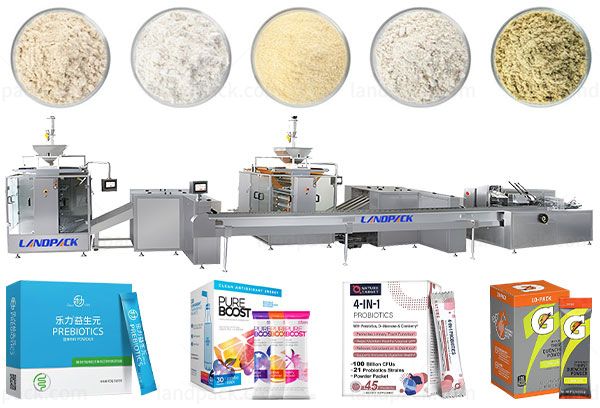

Multi-Lane Automatic Powder Stick Packaging Machine Boxing Production Line
Model: LD560BK+LD200ZH
Application:
High-accuracy powder multi-track packing machine is suitable for many kinds of powder products, such as coffee powder, tea powder, medical powder, chemical powder, flour, milk powder, glucose, medical powder, nutrition powder, etc.
Application:
High-accuracy powder multi-track packing machine is suitable for many kinds of powder products, such as coffee powder, tea powder, medical powder, chemical powder, flour, milk powder, glucose, medical powder, nutrition powder, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Examples:
| MULTI-LANE STICK PACK POWDER PACKAGING MACHINE | |
Model | LD560BK |
Lane number | 3-10 Lanes |
Filling Method | 1. Long auger; 2. Short auger; 3. Short auger with cup |
Capacity | Max.40 cycles/min |
Sachet size | L: 50-180mm; W: 20-90mm |
Film width & Thickness | Max.560mm, 0.07-0.10mm |
Sealing type | Back sealing/ Stick bag |
Cutting type | 1.Straight cutting; 2.Zig zag cutting; 3.Round cutting; 4.Die-cut |
Air & Power | 0.8Mpa, 0.8m³/min, 5.5kw |
Dimension & weight | 1685*1300*2005mm; 550kg |
| BOXING MACHINE | |
Model | LD200ZH |
Paper type | 250-400g/²(Boxes need come with pre-fold over) |
Capacity | 30-60 boxes/min |
Box type | Gusseted tongue type; Glue spray type |
Count way | Fixed number type; Numerable type; Manipulator counting |
Boxing way | Orderly type; Unorderly type |
Air & Power | 0.5-0.8Mpa, 0.3m³/min, 220V, 50/60HZ, 2.0KW |
Workflow | Box open - Bag packing - Check weigher - Counting - Boxing- Fold ears - Fold page - Gusseted tongue/Glue spray - Finish |

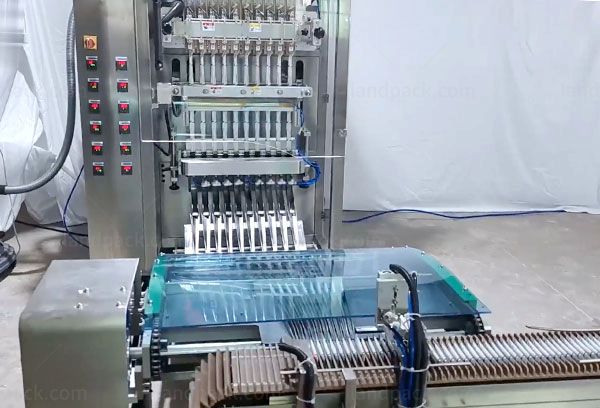

1. Automated Multifunctionality: This machine can automatically perform tasks such as measuring, bag making, sealing, cutting, counting, and finishing product conveyors.

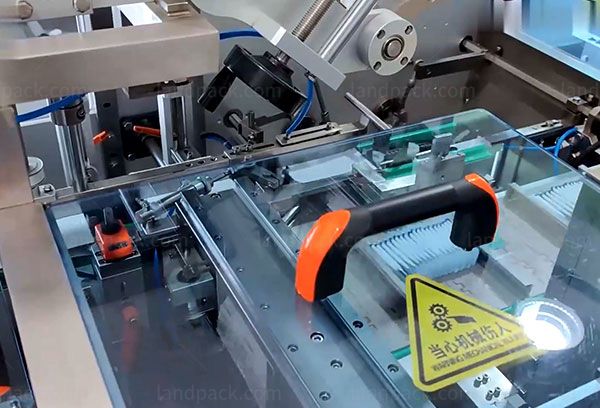

2. Hidden Heat and Moving Parts: The heat-generating components and moving parts are discreetly housed within a protective cover, ensuring safety and efficient operation.
3. Stainless Steel Contact Surfaces: The parts of the machine that come into contact with the product are made of stainless steel, meeting the requirements for pharmaceutical and food production.

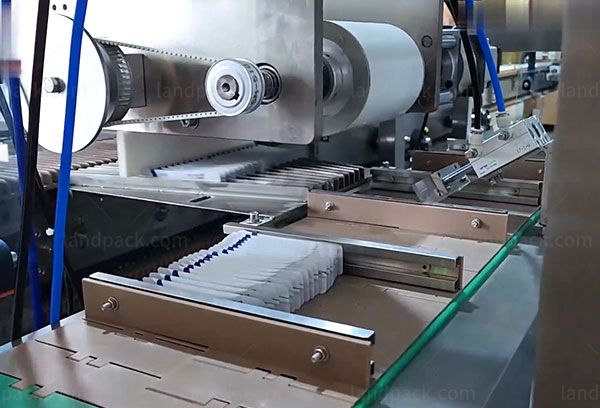

4. Parallel Material Placement: The material is pulled into the box in a parallel manner, minimizing equipment vibration and enhancing packaging speed and stability.
5. Efficient Box Sealing: The machine uses an eccentric wheel to pull the box sealing device, resulting in low operating volume and fast sealing speed.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
