Automatic Powder Weighing Filling Capping And Labeling Machine.
Model: LF-PJ-W02
Application:
Automatic Powder Weighing Filling Capping And Labeling Machine(LF-PJ-W02). It is suitable for automatic weighing filling capping and labeling of various fluidic or low-fluidity powder materials like milk powder, coffee powder, granular additive, etc. It's widely used in the various industry including pharmaceutical, foodstuff, cosmetic and chemical.
Introduction:
This automatic filling line is designed in accordance with the national GMP standard. The main body is made of 304 stainless steel. The motors, cylinders, electrical accessories, pneumatic components, etc. are all selected well-known brands, or customers can specify brands.
Application:
Automatic Powder Weighing Filling Capping And Labeling Machine(LF-PJ-W02). It is suitable for automatic weighing filling capping and labeling of various fluidic or low-fluidity powder materials like milk powder, coffee powder, granular additive, etc. It's widely used in the various industry including pharmaceutical, foodstuff, cosmetic and chemical.
Examples: Milk powder, protein powder, coffee powder, medicine powder, chemical powder, meal replacement powder, etc.
Packaging Type: Cans, Barrel, Bottles, Capsule, Cartons, Stand-up Pouch
Packaging Material: Glass, Metal, Paper, Plastic, Wood, Other.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Samples
Specification:
| Automatic Powder Weighing Filling Capping And Labeling Machine (LF-PJ-W02) | ||
| Model | (LF-PJ-W02 | LFP-02 |
| Filling Weight | 10-5000g(customizable) | 10-5000g(customizable) |
| Bottle diameter | Φ30-Φ140mm(customizable) | Φ30-Φ140mm(customizable) |
| Bottle height | 50mm-200mm(customizable) | 50mm-200mm(customizable) |
| Yield | 10-20 Bottle/min | 20-40 Bottle/min |
| Measurement accuracy | ≤500g，≤±1%；＞500g，≤±0.5% (Varies due to the characteristics of the material) | ≤500g，≤±1%；＞500g，≤±0.5% (Varies due to the characteristics of the material) |
| Power | 2.5KW | 5KW |
| Silo capacity | 50L | 50L |
| Power Supply | 220V、50Hz | 220V、50Hz |
| Working Pressure | 0.6-0.8MPa | 0.6-0.8MPa |
| Weight | 350kg | 550kg |
Description Of Main Packaging Process:
①Bottle Unscrambler → ② Automatic Powder Weighting And Filling Machine → ③Automatic Capping Machine → ④Automatic Labeling Machine

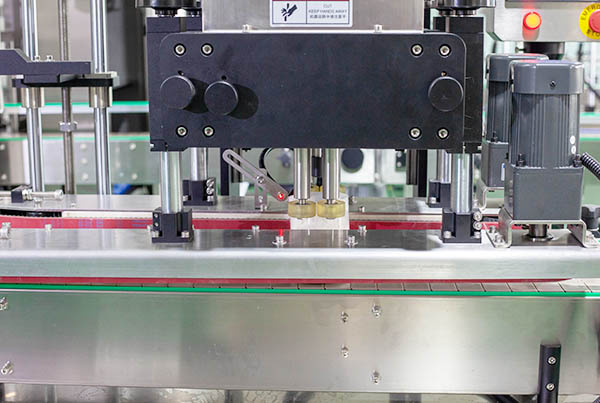

Automatic two-head Auger type metering/filling system works with the automatic capping machine.
Able to work with the double star wheels for bottle/can conveying & positioning system to perform the filling operation.
Conveyor is mounted a precision splitter to perform the intermittent movement for bottle/can to achieve the accurate positioning function.
Transmission system of the filling machine is driven by Japan Panasonic servo motor for high accuracy and stability.
Auto bottle/can positioning, lifting and vibrating, filling system is able to stop filling automatically when there's no bottle, and when bottle jammed occurs, the machine (system) will also stop automatically.
10 sets of memory modules for memorizing different kinds of products and filling weights.
HMI touch screen for operational control.
Japan Panasonic PLC.
Available to connect with material supply system at pre-section for auto linking connection.
Available to link with the capping and labeling systems... etc. at post section.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
