Automatic Multi Track Collagen/ Protein Powder Stick Packing Machine Connectable Cartoning Machine
Model: LD-280BF/ 560BF
Application:

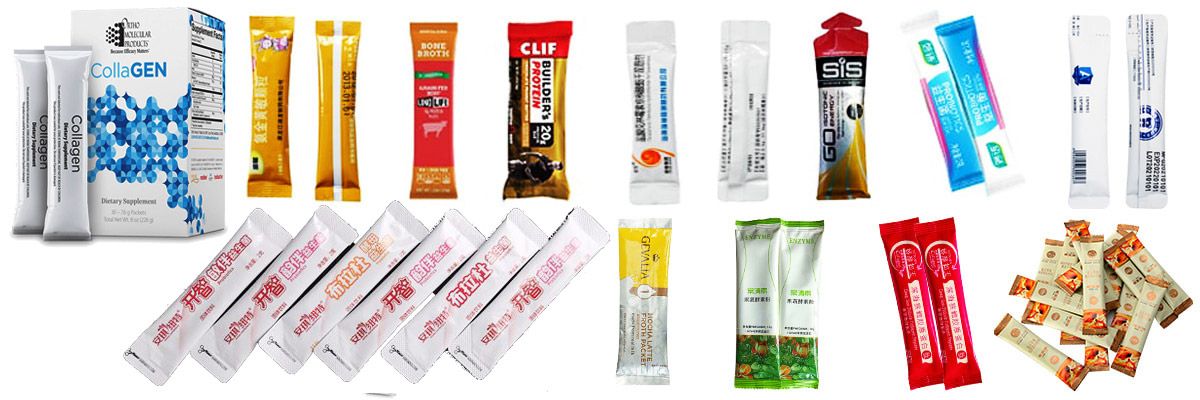

Automatic multi track collagen/ protein powder stick packing machine connectable cartoning machine, it is suitable for many kinds of powder products, such as health powder, protein powder, collagen powder, medicine powder, flour, milk powder, coffee powder, glucose, medical powder, nutrition powder, etc.
Application:
Automatic multi track collagen/ protein powder stick packing machine connectable cartoning machine, it is suitable for many kinds of powder products, such as health powder, protein powder, collagen powder, medicine powder, flour, milk powder, coffee powder, glucose, medical powder, nutrition powder, etc..
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Examber:
| Model | LD-280BF | LD-560BF |
| Lane number | 4-6 Line | 8-12 Line |
| Filling Method | Auger filling by servo motor | |
| Capacity | Max.35 cycle/ min | |
| Sachat Size | L:50-180mm; W:17-30mm | L:50-180mm; W:17-30mm |
| Film weidth & Thickness | Max.280mm, 0.07-0.10mm | Max.560mm, 0.07-0.10mm |
| Sealing type | Back sealing/Stick bag | Back sealing/Stick bag |
| Cutting type | 1.Straight cutting;2.Zig zag cutting;3.Round cutting;4.Irregular | |
| Air & Powder | 0.8Mpa 0.8m3/min; 3.5kw | 0.8Mpa 0.8m3/min; 5.5kw |
| Dimension & weight | 1385*918*2005mm;350kg | 1685*1300*2005mm;550kg |
Multi lanes machine can produce multi lanes bags at same time.
Machine main function: automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.
Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.
Stainless steel contact part and the machine outer shell, high feature for liquid running environment.
High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.
PLC controller, high function and control the whole machine’s work steps.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
