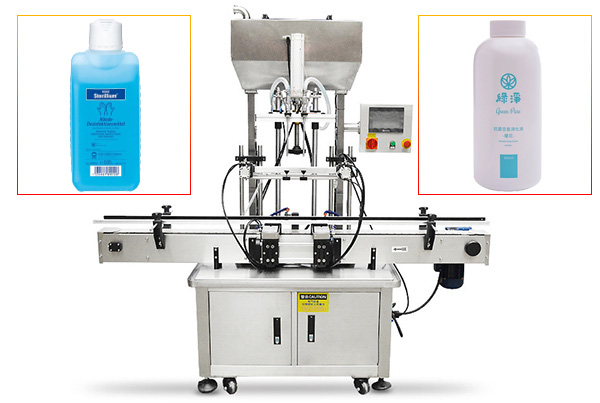

Automatic Bottle Filling Capping And Labeling Line For Hand Sanitizer Alcohol Gel
Model: LD-FL-10
Application:
Suitable for automatic filling, capping and labeling of various liquid products. Round, flat, square and other shaped bottles, cans, boxes and jas.
Advantages:
This liquid filling lines is driven by a servo motor to ensure high filling accuracy. It is controlled by PLC, man-machine interface and easy to operate. The filling volume can be changed by replacing the screw gauge, and the measuring range is wide.
Application:
Automatic Bottle Filling Capping And Labeling Line(LD-FL-10), it is suitable for automatic filling, capping and labeling of various round, flat, square and other special-shaped bottles, cans, boxes and cans. Applying to food, medicine, pesticide, chemical and other industries. such as hand sanitizer, alcohol gel, distilled spirits, lubricate oil, edible oil, liquid detergent, shampoo, tomato sauce, salad sauce.
Packaging Type: Cans, Tins, Barrel, Bottles, Capsule, Cartons, Stand-up Pouch
Packaging Material: Glass, Metal, Paper, Plastic, Wood, Other
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Samples
Parameters:
| Model | LFZ-06 | LFZ-08 | LFZ-10 | LFZ-12 |
| Filling Range | 50-1000ml (customizable) | 50-1000ml (customizable) | 50-1000ml (customizable) | 50-1000ml (customizable) |
| Filling Speed | <30 bottles/min (customizable) | <40 bottles/min (customizable) | <50 bottles/min (customizable) | <60 bottles/min (customizable) |
| Measurement Accuracy | ±1% | ±1% | ±1% | ±1% |
| Power | 1KW | 1.2KW | 1.2KW | 1.5KW |
| Power Supply | 220V、50Hz | 220V、50Hz | 220V、50Hz | 220V、50Hz |
| Working Pressure | 0.6-0.8MPa | 0.6-0.8MPa | 0.6-0.8MPa | 0.6-0.8MPa |
| Weight | 400kg | 450kg | 500kg | 550kg |
Stronger PLC software support, may realize the ideal filling operation.
The touching operation color screen, can display the production state, operation procedures and filling ways, tableau objective, operation simple and maintenance convenient.
This China most popular products simplex filler machine jar filling machines automatic liquid filling machine uses vacuum sucking technology to ensure no leakage of filling head during filling production process.
Each filling-head is equipped with a bottle-mouth-clamping device, ensuring the injecting material correct aiming at.
This machine suits for the filling of different sizes of vessel, may change the filling sizes within a few minutes.
Pivotal electrical part use world famous brand such as Mitsubishi, OMRON, SIEMENS.
Optional servo filling system.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
