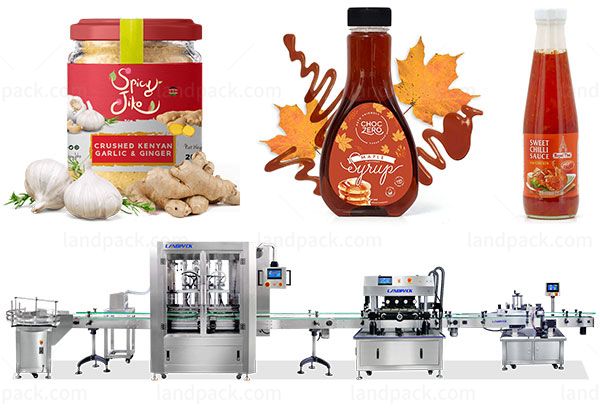

Full Automatic Sauce Bottle Filling Capping And Labeling Line
Model: LFH-TJ-4
Application:
Full automatic sauce bottle filling capping and labeling line (LFH-TJ-4), it is recommended for a wide variety of products including sauce peanut butter, condensed milk, chocolate sauce, ketchup, syrup, juice, shampoo, fruit juice, honey, etc.
Advantages:
The product adopts advanced general control technology by using PLC touch screen, and intelligent filling, can set the filling amount and filling speed through the touch screen.
Application:
Full Automatic Sauce Bottle Filling Capping And Labeling Fine (LFH-TJ-4), it is suitable for filling liquids and pastes of any fluidity in medicine, food, cosmetics and other industries.
Examples:
Sauce, peanut butter, condensed milk, chocolate sauce, ketchup, syrup, juice, shampoo, fruit juice, honey, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Sample:
| Model | LFH-TJ-04 |
| Filling Range | 50-1000ml (customizable) |
| Filling Speed | <15-25 bottles/min (refers to the range of 100-500ml) |
| Measurement Accuracy | ±1% |
| Control system | PLC |
| Total production line power | 5.5KW |
| Power supply | 220V、50Hz |
| Airconsumption | 0.6-0.8m³/min |
| Equipment material | 304 |
| Description of main packaging process | Unscramble bottles → Filling → Four-wheel screw cap → Labeling |
According to the needs of different configurations of automatic equipment assembly;
All the machine structures are selected and designed according to the food hygiene standards;
The inner wall of the container in contact with the material is polished;
The structures that are often disassembled and washed are all connected by easily disassembled parts, which is convenient for cleaning;
The packing line is mainly suitable for packing all kinds of liquid, fluid, and paste material, such as juice, edible oil, sauce, daily necessities, medicine, etc;
Complete set, the whole line is fully automatic, saving labor;
Piston-type measuring cylinder, servo drive, suitable for large particles of thick sauce filling;
Special sauce anti-drip filling head and increase the rotary valve, filling large particles of sauce, not blocking and leaking;
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
