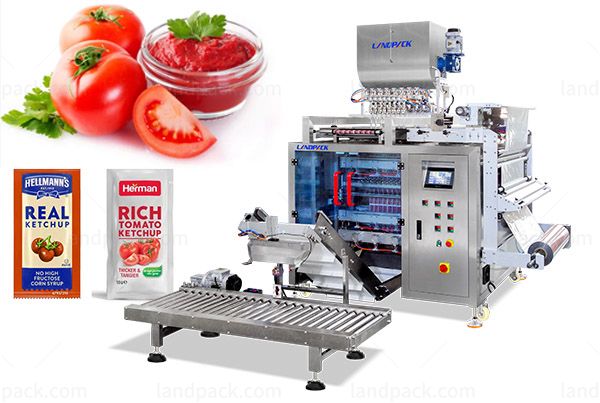

High Speed Sauce Sachet Multi Lane Packing Machine
Model: LD-420L
Application:
High speed sauce sachet multi lane packing machine, is suitable for sauce, tomato sauce, olive oil, syrup, peanut butter, chocolate sauce, ketchup, juice, shampoo, etc.
Advantages:
The product adopts advanced general control technology, can set the filling amount and filling speed through the touch screen.
Application:
High speed sauce sachet multi lane packing machine, it is suitable for filling liquids and pastes of any fluidity in various industries.
Examples:
Sauce, olive oil, syrup, peanut butter, chocolate sauce, ketchup, juice, shampoo, fruit juice, honey, jam, paste, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Sample:
Model | LD-480Y | LD-720Y | LD-960Y |
| Track Number | 4~6 Track | 4~10 Track | 4~12 Track |
| Filling Method | 1.Piston pump; 2.Peristaltic Pump | ||
| Capacity | Max.40 cycle/min | ||
| Sachet Size | L:45--120mm; W:35-60mm | L:45--120mm; W:35-90mm | L:45--120mm; W:35-120mm |
| Film Width & Thickness | Max.480mm;0.07-0.1mm | Max.720mm;0.07-0.1mm | Max.960mm;0.07-0.1mm |
| Sealing Type | 3/4 sides sealing | 3/4 sides sealing | 3/4 sides sealing |
| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | ||
| Air & Power | 0.8 mpa 0.8m³/min; 2.8kw | 0.8 mpa 0.8m³/min; 4.1kw | 0.8 mpa 0.8m³/min; 5.5kw |
| DIM & WT | 950*1470*1750mm; 300kg | 1153*1654*1750mm; 400kg | 1415*1686*2130mm; 500kg |
1. Automatically complete all tasks such as measurement, bag making, filling, sealing, batch number printing, cutting and counting.

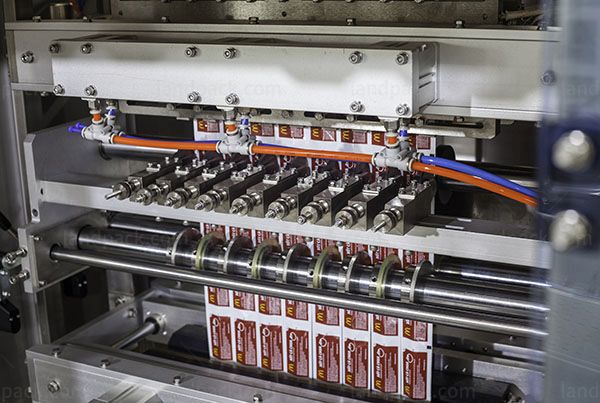

2. Automatic slitting film system, multi-line row and bag sealing at the same time.
3. Servo film running system, pneumatic control for horizontal sealing, accurate positioning, remarkable performance and beautiful packaging.
4. The dual light source photoelectric detection system is stable and reliable to ensure the integrity of the packaging bag.
5. Intelligent PLC control system, stable operation of the machine, convenient and fast operation,
6. A variety of automatic alarm protection functions can effectively reduce the loss of materials and ensure work safety.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
