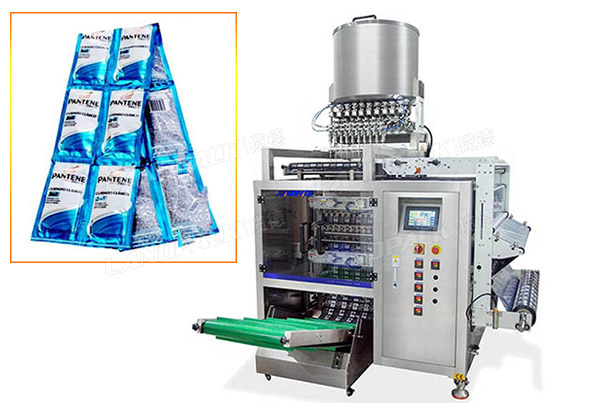

Full Automatic Multi Lanes Liquid Sachet Packing Machine
Model: LD-480Y
Application:
Suitable To Pack Liquid Product Or Paste Materials, Such As Shampoo, Ketchup, Jelly, Sauce, Etc.
Machine main function:
Automatic split film at the right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.
Application:
This machine is applicable for dosing liquid or semi-liquid and sealing in form of 4 sides sealed sachet, including the sachet forming, product dosing, filling, and sachet sealing processes, with single cutting or string sachet cutting. the detailed application description as the following table:
| Application Description | |
| Applicable Sealing Style | 3/4 sides sealing |
| Applicable Products | Configure with pump, capable to pack liquid products |
| Applicable Packaging Material | Laminate Heat sealable packing materials such as OPP/PE, BOPP/VMPET/PE, PET/AL/PE, etc. |
| Applicable industry | cream sample, shampoo, ketchup, soy sauce, mayonnaise, mouthwash, salad dressing, honey, hand cleaner gel, etc. |
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
Model | LD-480Y | LD-720Y | LD-960Y |
| Track Number | 4~6 Track | 4~10 Track | 4~12 Track |
| Filling Method | 1. Piston pump; 2.Peristaltic Pump | ||
| Capacity | Max.40 cycles/min | ||
| Sachet Size | L:45--120mm; W:35-60mm | L:45--120mm; W:35-90mm | L:45--120mm; W:35-120mm |
| Film Width & Thickness | Max.480mm;0.07-0.1mm | Max.720mm;0.07-0.1mm | Max.960mm;0.07-0.1mm |
| Sealing Type | 4 sides sealing | 4 sides sealing | 4 sides sealing |
| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | ||
| Air & Power | 0.8 mpa 0.8m³/min; 2.8kw | 0.8 mpa 0.8m³/min; 4.1kw | 0.8 mpa 0.8m³/min; 5.5kw |
| DIM & WT | 950*1470*1750mm; 300kg | 1153*1654*1750mm; 400kg | 1415*1686*2130mm; 500kg |
1. Multi lanes machines can produce multi lanes bags at the same time.
2. Machine main function: automatic split film at the right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.
3. Other functions: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step, etc.
4. Stainless steel contact part and the machine's outer shell, high features for the liquid running environment.
5. High-precision photocell sensor for auto-tracking the eye mark printing on the film roll, so cut each bag at a precise position.
6. PLC controller, high function and control the whole machine's work steps.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
