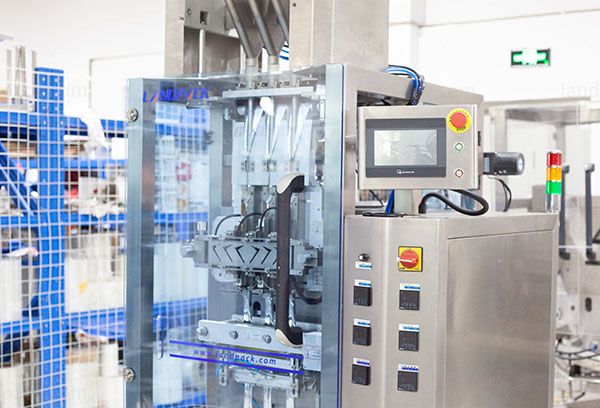

High Speed Multi Track Silica Gel Stick Packing Machine
Model: LDBK280G-3
Application:
It is used for automatic packing of various fine particle products into stick pack. such as silica gel, desiccant, sugar, coffee, salt, seed, sesame, bean, desiccant, health products industry and so on.
Application:
High speed multi track silica gel stick packing machine, small footprint, suitable for use in limited factory space.
Examples:
Silica gel, desiccant, sugar, coffee, salt, seed, sesame, bean, desiccant, health products industry and so on.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
| Model | LDBK280 | LDBK560 |
| Filling Method | 1. Volumetric cup 2. Weigher | |
| Film width&Thickness | Max.280mm, 0.07-0.10mm | Max.560mm, 0.07-0.10mm |
| Packing speed | 30-40bag/min/lane | |
| Air consumption | 0.8mpa | |
| Sealing type | Backsealing/ Stick bag | |
| Powder | 3.5KW | 5.5KW |
| Machine Weight | 350KG | 550KG |
| Dimensions (mm) | 1385(L)*918(W)*2005(H) | 1685(L)*1300(W)*2005(H) |
1. Multi lanes machine can produce multi lanes bags at same time.
2. Machine main function: automatic split film at right position,liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.
3. Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.
4. Stainless steel contact part and the machine outer shell, high feature for liquid running environment.
5. High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.
6. PLC controller, high function and control the whole machine' s work steps.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
