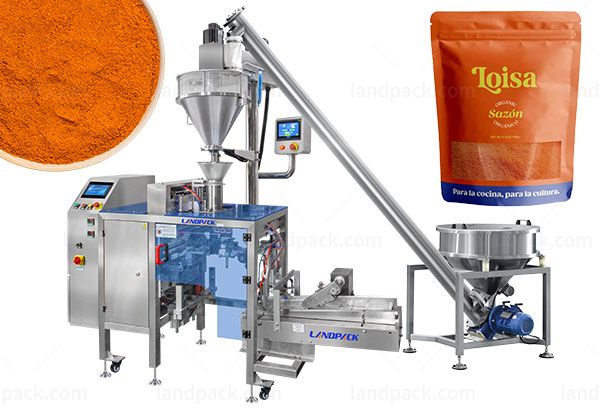

Low Cost Spice Powder Mini Premade Pouch Doypack Machine

Model: LG1-430

Applicaiton:

Suitable for packaging spice powder, protein powder, milk powder, seasoning powder, coffee powder, chilli powder, dandelion powder, tea powder, pesticide powder, collagen powder, veterinary drug powder, etc.

Advantage:

Single station prefabricated bag packaging machine, small footprint

E-mail: [email protected]

Tel/Whtasapp: +86 173 8860 2385

Get Price Send Email

Application
Description
Features
Videos

Application:

Low cost spice powder mini premade pouch doypack machine(LG1-430), It is widely used in powder filling and seaming machine, supporting powder vacuum cleaner for dust removal to create a clean workshop.

Examples:

Spice powder, coffee powder, talcum, milk powder, detergent powder, flour and protein powder, etc.

Bag type:

Premade pouch can be 3-side-seal, gussette pouch, standup pouch with zipper or no-zip-lock. Ideal choice for milk powder, glucose, seasoning, washing powder, chemical materials, pesticide, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Sample:

Low Cost Spice Powder Mini Premade Pouch Doypack Machine

Model: LD-300D/LD--430D

Bag Material: Multilayer Composite Premade Bag(e.g.: PET/PE)

Bag Type: 3 Side Seal Bag, Stand-up Bag

Upgradable Bag Type: Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device)

Size Range: 80mm≤W≤300mm 100mm≤L≤400mm

Speed: 0~15bags/min

Sealing Type: Straight grain, pitch is 1mm (Optional reticulate)

Sealing Width: 10mm (5--20mm can be customized)

Voltage: 220V, Single-phase, 50/60HZ, 1.2KW

Air Pressure: 0.65Mpa

Air Consumption: 0.3m³/min (Standard machine, no additional function)

Body Dimension: 1770*600*1260mm

Packing Dimension: 1860*710*1650mm (Export non-fumigation wooden case)

Basic Functions:

1. The machine stops running when the safety key interlock switch is pulled out;

2. No bag prompting function;

3. Self-diagnosis function of open the bag failed (The bag can be reused); In that case, the machine will not fill and seal, it will re-take the bag;

4. Positioning (anti-dropping) function of hopper;

5. Warning function of cartridge heater fault;

6. Warning function of cylinder fault;

7. Warning function which air pressure is not up to standard;

Performance Features:

1. Easy to operate and easy to replace the bag / The machine is suitable for a variety of bag types;

2. Low maintenance cost / Modular replacement of the parts;

3. Single station prefabricated bag packaging machine, small footprint;

4. Supporting powder vacuum cleaner for dust removal to create a clean workshop;
