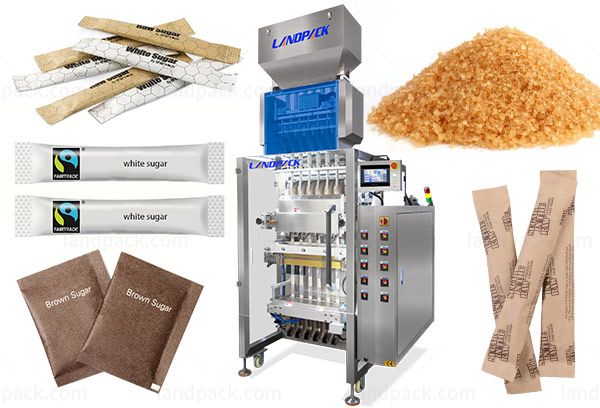

Automatic 6 Lane Sugar Salt Stick Bags Filling And Packing Machine
Model: LDBK560G
Application:
It is used for automatic filling of various granule into stick bags, such as sugar, salt, coffee, seed, sesame, desiccant, desiccant, health products Industry and so on.
Application:
Automatic 6 lane sugar salt stick bags filling and packing machine, suitable for packaging of various granular materials, such as food, chemicals, medicine, etc.
Examples:
Sugar, salt, coffee, seed, sesame, desiccant, desiccant, health products Industry and so on.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Examples:
| Model | LDBK280 | LDBK560 |
| Filling Method | 1. Volumetric cup 2. Weigher | |
| Film width&Thickness | Max.280mm, 0.07-0.10mm | Max.560mm, 0.07-0.10mm |
| Packing speed | 30-40bag/min/lane | |
| Air consumption | 0.8mpa | |
| Sealing type | Backsealing/ Stick bag | |
| Powder | 3.5KW | 5.5KW |
| Machine Weight | 350KG | 550KG |
| Dimensions (mm) | 1385(L)*918(W)*2005(H) | 1685(L)*1300(W)*2005(H) |
1. Multi lanes machine can produce multi lanes bags at same time.
2. Machine main function: automatic split film at right position,liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.
3. Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.
5. Stainless steel contact part and the machine outer shell, high feature for liquid running environment.
6. High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.
7. PLC controller, high function and control the whole machine' s work steps.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
