Liquid Filling Sealing Pouch Packaging Machines Vinegar Spout Rotary Doypack Packing Machine
Model: LD-8200L
Application:
It is suitable for packaging liquid or semi-fluid materials,such as detergent powder, soy sauce, vinegar, juice, beverage, jam, sauce, paint, etc.
Suitable Pouches:
All type of heat sealable preformed side seal bags, fin seal bags, gusseted bags, block bottom bags, zip-lock recloseable bags, stand-up pouch with or without spout ect.
Application:
It is suitable for packaging liquid or semi-fluid materials,such as detergent powder, soy sauce, vinegar, juice, beverage, jam, sauce, paint, etc.
Examples:
Vinegar, Soy sauce, Ketchup, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Sample:
| Model | LD-8200L |
| No.of working stations | Eight |
| Bags size | W: 100-200mm L: 100-400mm |
| Filling range | 10-2500g depending on type of products |
| Packing speed | 25-60bag/min（speed is determined by the product filling quantity） |
| Total power | 2.5KW |
| Weight | 1400kgs |
| Dimensions | 1140mm X 1500mm X 1560mm（L*W*H） |
| Work flow | giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product |
| Main standard parts | 1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system |
1. Combining with liquid pump, pneumatic cylinder measurement, accurate material,quality weighing.
2. 100L SS316 Storage Hopper for big Tank Liquid Storage No Liquid With Feeding Alarm Function.
3. The system shows 1.no bag feeding, no filling and no sealing. 2.no bag opening/opening error, no filling and no sealing 3.no filling, no sealing.

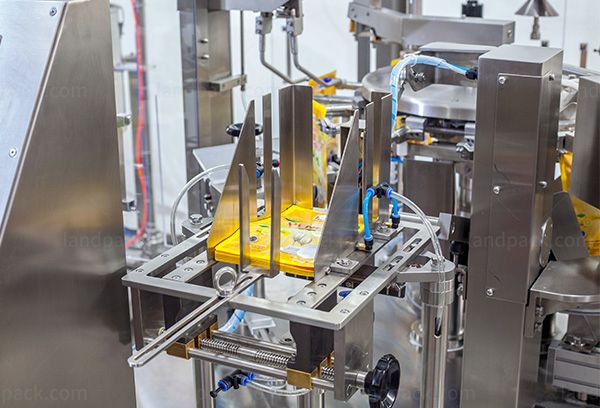

4. Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately.
5. Rotary doypack machine has the functions of no bag no filling & no filling no sealing.
6.Filling Range from 100ml-2500ml.
7.High Speed 25-40bags per min saving labour cost.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
