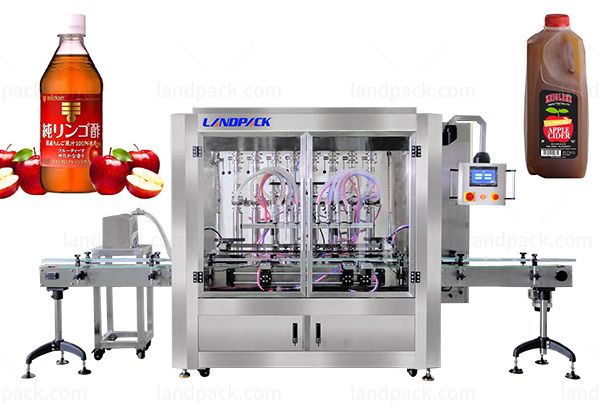

Automatic Vinegar Filling Capping And Labeling Line 4 Heads Tracking Type Filling Machine
Model : LD-ALF04
Application :
The packing line is mainly suitable for packing all kinds of liquid, fluid and paste material, such as vinegar, peanut butter, ketchup, condiments, mayonnaise, syrup, detergent, edible oil, juice, automobile oil, jam, hand sanitizer, olive oil, glass water, shower gel, shampoo, body lotion, etc.
Application :
The packing line is mainly suitable for packing all kinds of liquid, fluid and paste material, featuring a 4-head mobile filling machine, it ensures fast and efficient batch production for large-capacity bottles.
Examples :
Vinegar, peanut butter, ketchup, condiments, mayonnaise, syrup, detergent, edible oil, juice, automobile oil, jam, hand sanitizer, olive oil, glass water, shower gel, shampoo, body lotion, etc
Kindly Reminder :
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Samples :
| Bottle Liquid filling machine | ||||
| Model | LFZ-04 | LFZ-06 | LFZ-08 | LFZ-10 |
| Filling Range | 50-1000ml (customizable) | 50-1000ml (customizable) | 50-1000ml (customizable) | 50-1000ml (customizable) |
| Production Speed | <15-25 bottles/min | <20-35 bottles/min | <30-40 bottles/min | <40-50 bottles/min |
| Measurement Accuracy | ±1% | ±1% | ±1% | ±1% |
| Power | 2KW | 2.5KW | 3.5KW | 5KW |
| Voltage | 220V, 50Hz | 220V, 50Hz | 220V, 50Hz | 220V, 50Hz |
| Air consumption | 0.6-8Mpa | 0.6-8Mpa | 0.6-8Mpa | 0.6-8Mpa |
| Weight | 600kg | 650kg | 800kg | 800kg |
| Dimension | L4000*W1320*H2090(mm) | L4000*W1320*H2090(mm) | L4000*W1320*H2090(mm) | L4000*W1320*H2090(mm) |
| Double-head four-wheel capping machine | |
| Speed | 0-100pcs/Min |
| Cap Type | Screw cap |
| Bottle Diameter | 30-110mm |
| Bottle Height | 50-250mm |
| Cap Diameter | 18-80mm |
| Power | 5KW |
| Air Pressure | 0.6-0.8Mpa |
| Voltage | 220V/380V, 50Hz/60Hz |
| Weight | 1000KG |
| Dimension | 2600mm*1200mm * 2050mm |
| Automatic Labeling Machine | ||
| Model | LFT-LG-100(Low speed labeling) | LFT-GS-100(High speed labeling) |
| Label length | 20mm～300mm | 20mm～300mm |
| Label width/height | 20mm～200mm(can be customized) | 20mm～200mm(can be customized) |
| Bottle width | 30-150mm(can be customized) | 30-150mm(can be customized) |
| Roll Label outer diameter | 300mm | 300mm |
| Roll Label inner diameter | 76mm | 76mm |
| Accuracy | ±1mm | ±1mm |
| Label speed | 40-100pcs/min | 60-120pcs/min |
| Conveyor speed | 5～25m/min | 15～20m/min |
| Suitable label type | Adhesive sticker label(transparent label need customized) | Adhesive sticker label(transparent label need customized) |
| Working air pressure | 0.4-0.6Mpa | 0.4-0.6Mpa |
| Voltage | 220V can be customized 4KW | 220V can be customized 4KW |
| Weight | 350KG | 450KG |
| Overall dimension | 3000mm×1450mm×1950mm | 3050mm×1550mm×1950mm |
1. High-Speed Multi-Head Filling – Equipped with 4 filling heads, achieving a rapid output of 50-60 bottles per minute.
2. Adjustable Multi-Stage Filling – Features 2 or 3-speed filling modes with customizable speed and volume settings to minimize liquid splashing.
3. Smart Photoelectric Detection – Ensures precise bottle tracking and prevents empty filling for seamless operation.
4. Twin-Head Capping System – Delivers efficient and secure cap sealing for consistent packaging integrity.
5. Versatile Dual-Side Labeling – Compatible with both round and square bottles for flexible application.
6. Quick-Height Adjustment – Easily modify bottle height settings via the user-friendly touchscreen interface.
7. Multi-Recipe Memory – Stores up to 10 preset filling formulas for fast production changeovers.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
